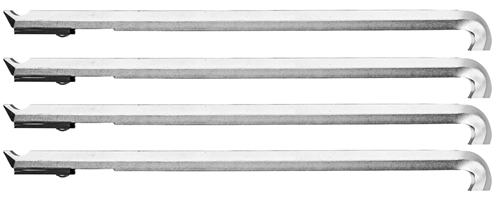

Puller hook set 226 mm with spacers, 4 pieces
1.29/40
/ Code no. 8012240
Puller hook set 226 mm with spacers, 4 pieces
1.29/40
/ Code no. 8012240
Price on request
Product line
EAN
4036976105209
Product description
-
Dimensions and weights
- Total length [mm]: 237 mm
- Weight [kg]: 0,6 kg
-
Scope of delivery
- Parts list (Text): 129/40 Pulling hook 1 pc. 226mm with 5 spacers
- Contents (Qty of pieces): 4
-
Technical characteristics
- Distance inner radius rear edge: 6,4 - 8,9 mm
- Distance inner radius of rear edge stepped [mm]: 6,4 mm
- Distance from top edge of radius to tip of hook foot [mm].: 13,1 mm
- for ball bearing No.: 6306 6307 6404 6208 6209 6210 6307
- for ball bearing extractor: 1.29/3 1.29/4
- Width of hooked foot: 11.3 mm
- Hook foot length upper edge of head [mm].: 227 mm
- Hook foot length Lower edge of head: 197, 199 mm
- Depth of hooked foot [mm] 3: 10 mm
- Rounding Diameter [mm]: 6 mm
