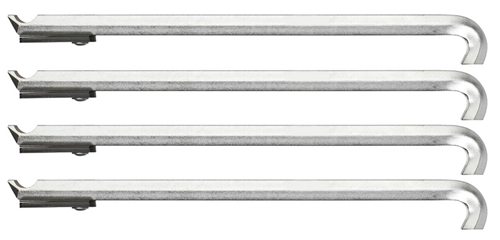

Puller hook set 178 mm with spacers, 4 pieces
1.29/35
/ Code no. 8012160
Puller hook set 178 mm with spacers, 4 pieces
1.29/35
/ Code no. 8012160
Price on request
Product line
EAN
4036976105193
Product description
-
Dimensions and weights
- Total length [mm]: 186 mm
- Weight [kg]: 0,365 kg
-
Scope of delivery
- Parts list (Text): 129/35 pulling hook 1 pc. 178mm with 5 spacers (4x)
- Contents (Qty of pieces): 4
-
Technical characteristics
- Distance inner radius rear edge: 4,8 - 7,3 mm
- Distance inner radius of rear edge stepped [mm]: 4,8 mm
- Distance from top edge of radius to tip of hook foot [mm].: 11,8 mm
- for ball bearing No.: 6305 6207 6305 6403 6011 6012
- for ball bearing extractor: 1.29/1 1.29/3 1.29/4 1.29/5
- Width of hooked foot: 9 mm
- Hook foot length upper edge of head [mm].: 178 mm
- Hook foot length Lower edge of head: 148, 148, 150, 158 mm
- Depth of hooked foot [mm] 3: 8 mm
- Rounding Diameter [mm]: 5 mm
