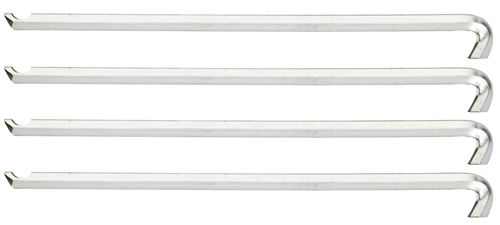

Pulling hook set 170 mm 4 pieces
1.29/25
/ Code no. 8011940
Pulling hook set 170 mm 4 pieces
1.29/25
/ Code no. 8011940
Price on request
Product line
EAN
4036976105179
Product description
-
Dimensions and weights
- Total length [mm]: 176 mm
- Weight [kg]: 0,2 kg
-
Scope of delivery
- Parts list (Text): 129/25 Abzughaken 1 St. 170 mm (4x)
- Contents (Qty of pieces): 4
-

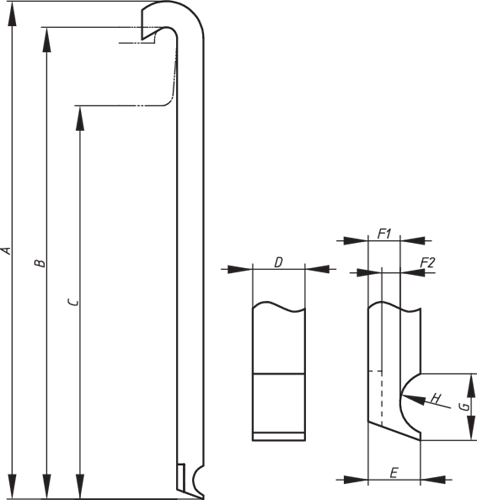

Technical characteristics
- Distance inner radius rear edge: 3,7 mm
- Distance inner radius of rear edge stepped [mm]: 3,7 mm
- Distance from top edge of radius to tip of hook foot [mm].: 9,8 mm
- for ball bearing No.: 6204 6205 6301 6302 6007 6008 6300 6301 6302
- for ball bearing extractor: 1.29/1 1.29/3
- Width of hooked foot: 6.7 mm
- Hook foot length upper edge of head [mm].: 170 mm
- Hook foot length Lower edge of head: 142, 150 mm
- Depth of hooked foot [mm] 3: 6 mm
- Rounding Diameter [mm]: 4 mm
