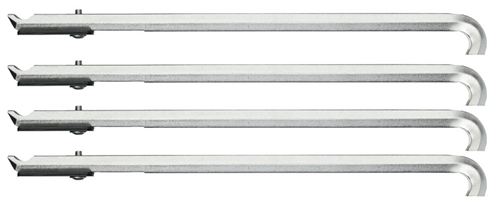

Puller hook set 178 mm with spacers, 4 pieces
1.29/30
/ Code no. 8012080
Puller hook set 178 mm with spacers, 4 pieces
1.29/30
/ Code no. 8012080
Price on request
Product line
EAN
4036976105186
Product description
-
Dimensions and weights
- Total length [mm]: 186 mm
- Weight [kg]: 0,275 kg
-
Scope of delivery
- Parts list (Text): 129/30 pulling hook 1 pc. 178mm with 3 spacers (4x)
- Contents (Qty of pieces): 4
-
Technical characteristics
- Distance inner radius rear edge: 4,4 - 6,1 mm
- Distance inner radius of rear edge stepped [mm]: 4,4 mm
- Distance from top edge of radius to tip of hook foot [mm].: 10,3 mm
- for ball bearing No.: 6303 6304 6009 6010 6011 6012 6204 6205 6206 6303 6304 6009 6010
- for ball bearing extractor: 1.29/1 1.29/3 1.29/4
- Width of hooked foot: 7.9 mm
- Hook foot length upper edge of head [mm].: 179 mm
- Hook foot length Lower edge of head: 149, 151, 159 mm
- Depth of hooked foot [mm] 3: 7 mm
- Rounding Diameter [mm]: 5 mm
