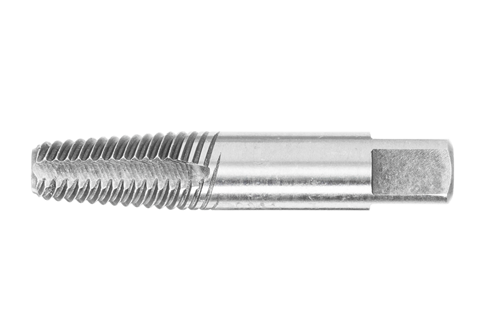

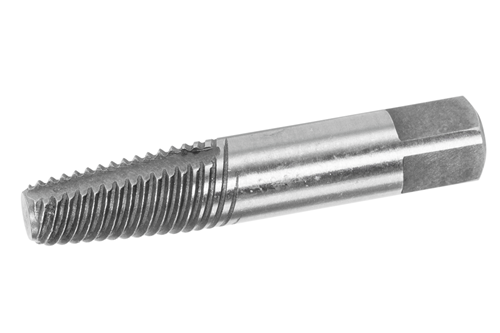

Screw extractor size 6 M18-M24
8551 S 6
/ Code no. 2659417
Screw extractor size 6 M18-M24
8551 S 6
/ Code no. 2659417
Price on request
Product line
EAN
4010886930564
Product description
- For removing broken screws, bolts and tube ends
- Chrome vanadium steel, 54-56 HRC, quenched and tempered
- Minimum extraction force torque thanks to the new cross-sectional geometry
- Reduced drilling depth thanks to an optimised thread length
- Greater safety for user and component alike
- Larger application range, time-saving
-
Dimensions and weights
- Total length [mm]: 85 mm
- Weight [kg]: 0,085 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 12 mm
- Bore Ø [mm]: 14 mm
- Diameter range [mm]: 12,0 mm
- for thread (metric): M18 - M24
- for thread (inch): 3/4" - 1"
- appropriate for: Removing broken screws, bolts and tube ends
- Hardness [HRC]: 54-56 HRC
- Material: Chrome‑vanadium steel
