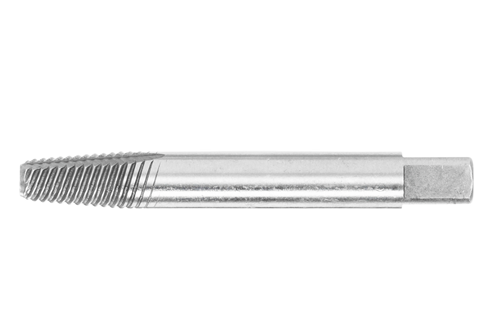

Screw extractor size 4 M11-M14
8551 S 4
/ Code no. 2659395
Screw extractor size 4 M11-M14
8551 S 4
/ Code no. 2659395
Price on request
Product line
EAN
4010886930540
Product description
- For removing broken screws, bolts and tube ends
- Chrome vanadium steel, 54-56 HRC, quenched and tempered
- Minimum extraction force torque thanks to the new cross-sectional geometry
- Reduced drilling depth thanks to an optimised thread length
- Greater safety for user and component alike
- Larger application range, time-saving
-
Dimensions and weights
- Total width [mm]: 9 mm
- Total height [mm]: 9 mm
- Total length [mm]: 65 mm
- Weight [kg]: 0,025 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 7 mm
- Bore Ø [mm]: 6,5 mm
- Diameter range [mm]: 6,5 - 16,0 mm
- for thread (metric): M11 - M14
- for thread (inch): 7/16" - 9/16"
- appropriate for: Removing broken screws, bolts and tube ends
- Hardness [HRC]: 54-56 HRC
- Material: Chrome‑vanadium steel
