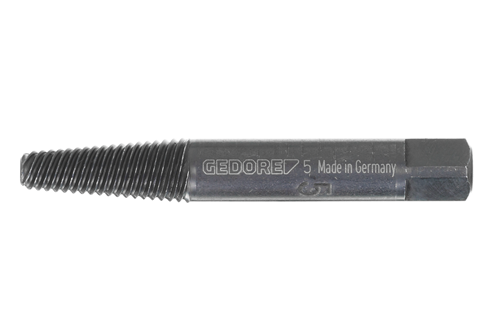

Screw extractor 6.2-11mm M14-M18
8551 5
/ Code no. 6758810
Screw extractor 6.2-11mm M14-M18
8551 5
/ Code no. 6758810
Price on request
Product line
EAN
4010886675885
Product description
- Chrom-vanadium-steel, 54 HRC
- Operation:
- Drill a central hole into the broken bolt
- Turn the bolt extractor to the left into this hole until it grips and removes the bolt (penetrating oil may be necessary!)
- Select screw extractors as large as possible
-
Dimensions and weights
- Total width [mm]: 11 mm
- Total height [mm]: 11 mm
- Total length [mm]: 78 mm
- Weight [kg]: 0,06 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 9 mm
- Bore Ø [mm]: 7 mm
- Diameter range [mm]: 6,2 - 11,0 mm
- for thread (metric): M14 - M18
- for thread (inch): 9/16" - 3/4"
- Hardness [HRC]: 54 HRC
- Material: Chrome‑vanadium steel
