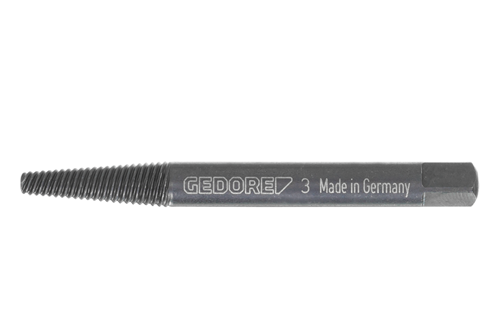

Screw extractor 3.1-5.5mm M8-M11
8551 3
/ Code no. 6758650
Screw extractor 3.1-5.5mm M8-M11
8551 3
/ Code no. 6758650
Price on request
Product line
EAN
4010886675861
Product description
- Chrom-vanadium-steel, 54 HRC
- Operation:
- Drill a central hole into the broken bolt
- Turn the bolt extractor to the left into this hole until it grips and removes the bolt (penetrating oil may be necessary!)
- Select screw extractors as large as possible
-
Dimensions and weights
- Total width [mm]: 6 mm
- Total height [mm]: 6 mm
- Total length [mm]: 64 mm
- Weight [kg]: 0,015 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 4,9 mm
- Bore Ø [mm]: 3,7 mm
- Diameter range [mm]: 3,1 - 5,5 mm
- for thread (metric): M8 - M11
- for thread (inch): 5/16" - 7/16"
- Hardness [HRC]: 54 HRC
- Material: Chrome‑vanadium steel
