VDE-19-VDE-Socket-1-2-

VDE socket wrench insert 1/2" 6-point 24 mm

VDE 19 24 / Code no. 6123590
VDE socket wrench insert 1/2" 6-point 24 mm - 6123590 (1)
VDE socket wrench insert 1/2" 6-point 24 mm - 6123590 (2)
VDE socket wrench insert 1/2" 6-point 24 mm - 6123590 (1) (Thumbnail)
VDE socket wrench insert 1/2" 6-point 24 mm - 6123590 (2) (Thumbnail)

VDE socket wrench insert 1/2" 6-point 24 mm

VDE 19 24 / Code no. 6123590
Price on request
BUY ONLINE Find A Dealer
Product line
EAN 4010886612354
Product description
  • Hexagonal, manually operated
  • With square drive as per DIN 3120 - C 12.5, ISO 1174
  • GEDORE vanadium steel 31CrV3
  • Protective insulation up to 1000 V, according to EN 60900/IEC 60900, 2-fold Check-Tool insulation
  • 16 - 18 mm insulation overhang

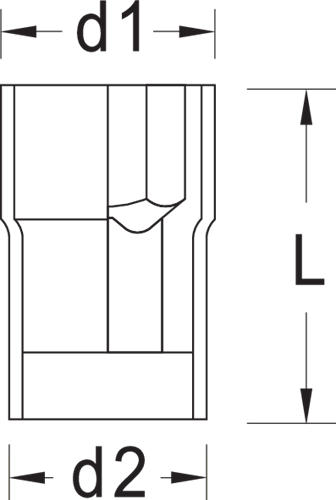

  • The diameter d1 for the dimensions 27, 30 and 32 is not standardized
  • Dimensions and weights
    • Total width [mm]: 37 mm
    • Total length [mm]: 57,5 mm
    • Weight [kg]: 0,125 kg
  • Scope of delivery
    • Contents (Qty of pieces): 1
  • Technical characteristics
    • Drive mount, square [metric]: 12,5 mm
    • Drive connector square [inch]: 1/2"
    • Execution: VDE insulated up to 1000 V
    • Working length: 57,5 mm
    • Insert-Ø 1: 37,0 mm
    • Insert-Ø 2: 27,0 mm
    • Material: Chrome‑vanadium steel 31CrV3
    • Standard: DIN 3120 – C 12,5 ISO 1174 EN 60900/IEC60900
    • Surface: double check‑tool insulation
    • Width across flats 1 [mm]: 24
    • Safety: Kugelfangrille
