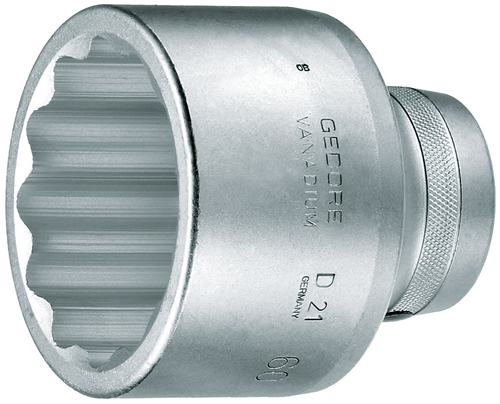

Socket 1" bi-hex 2.1/4"
D 21 2.1/4AF
/ Code no. 6177330
Socket 1" bi-hex 2.1/4"
D 21 2.1/4AF
/ Code no. 6177330
Price on request
Product line
EAN
4010886617731
Product description
- Square drive as per DIN 3120 - D 25, ISO 1174, with locking pin
- Manually operated, with non-slip cross knurling
- GEDORE vanadium steel 31CrV3, chromed
-
Dimensions and weights
- Total width [mm]: 80,3 mm
- Total length [mm]: 80 mm
- Weight [kg]: 1,23 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 25,0 mm
- Drive connector square [inch]: 1"
- Working length: 80,0 mm
- Insert-Ø 1: 80,3 mm
- Insert-Ø 2: 50,0 mm
- Operating depth: 37,5 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: ISO 1174 DIN 3120 – D 25
- Surface: chrome‑plated
- Width across flats 1 [AF]: 2.1/4"
- Safety: Stiftsicherung
