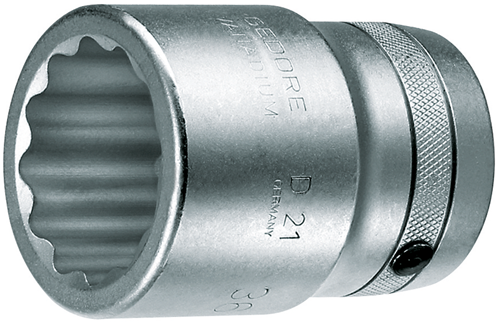

Socket 1" bi-hex 1.1/2"
D 21 1.1/2AF
/ Code no. 6176520
Socket 1" bi-hex 1.1/2"
D 21 1.1/2AF
/ Code no. 6176520
Price on request
Product line
EAN
4010886617656
Product description
- Square drive as per DIN 3120 - D 25, ISO 1174, with locking pin
- Manually operated, with non-slip cross knurling
- GEDORE vanadium steel 31CrV3, chromed
-
Dimensions and weights
- Total width [mm]: 56,5 mm
- Total length [mm]: 70 mm
- Weight [kg]: 0,649 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 25,0 mm
- Drive connector square [inch]: 1"
- Working length: 70,0 mm
- Insert-Ø 1: 56,5 mm
- Insert-Ø 2: 48,0 mm
- Operating depth: 30,0 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: ISO 1174 DIN 3120 – D 25
- Surface: chrome‑plated
- Width across flats 1 [AF]: 1.1/2"
- Safety: Stiftsicherung
