8250-Power-combination-pliers

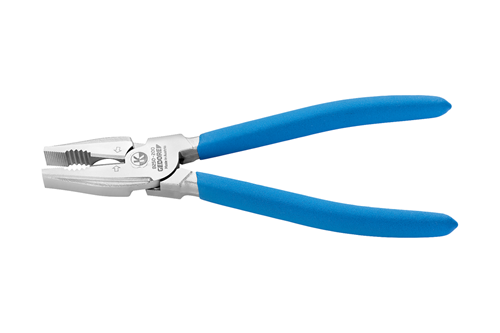

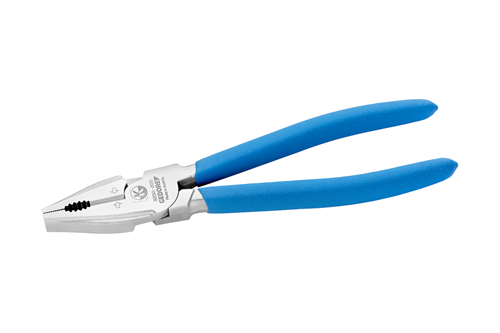

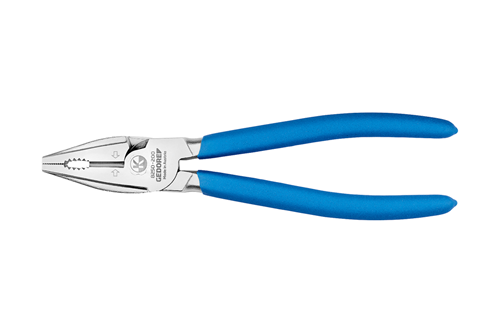

Power combination pliers, dip-insulated, 200 mm, chrome-plated

8250-200 TC / Code no. 3463214

Power combination pliers, dip-insulated, 200 mm, chrome-plated

8250-200 TC / Code no. 3463214
Price on request
Product line
EAN 4010886976081
Product description
  • Acc. to DIN ISO 5746
  • For heavy continuous use
  • High leverage for easier work
  • Induction hardened precision cutting edges, extra long, cutting edge hardness 62 - 64 HRC
  • For round and flat material
  • For all wires, also hard wire/piano wire, 1.6 mm
  • GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
  • JC = chrome-plated, with 2-component handle covers
  • TL = steel-grey, with blue dipped non-slip handles
  • TC= chrome-plated, with blue dipped plastic coating
  • Forceps means 35% less effort
  • Gripping surface with file-cut for a particularly effective hold
  • Roughly toothed gripping surfaces for securely holding screws, pipes etc.
  • Dimensions and weights
    • Total width [mm]: 49 mm
    • Total height [mm]: 16 mm
    • Total length [mm]: 197 mm
    • Weight [kg]: 0,288 kg
  • Scope of delivery
    • Contents (Qty of pieces): 1
  • Technical characteristics
    • Design non-sparking: No
    • Jaw shape [mm]: flache Backen
    • Jaw length L3 [mm]: 39,5 mm
    • Bevel: with
    • Joint types: eingelegtes Gelenk
    • Handle design: tauchisoliert
    • Handle colour: blue
    • Hardening process: Induction hardened
    • Width of head 1 [mm]: 27,0 mm
    • Head thickness [mm] T1: 12,4 mm
    • Material: Quenched and tempered steel
    • with cutting edge: Yes
    • Standard: DIN ISO 5746
    • Surface: chrome‑plated
    • Blade shape: mit Facette
    • Hardness of cutting edge: 62 - 64 HRC
    • Cutting values: Piano wire: 2,2 mm / 11 AWG Hard wire: 2,8 mm / 9 AWG Medium hard wire: 3,8 mm / 7 AWG Soft wire: 6 mm / 3 AWG Cu cable, multi wire cross section: 25 mm² Multi-wire cable Ø: 13 mm
    • Width of centres W4 [mm]: 6,5 mm
    • Thickness of point: 12,4 mm
