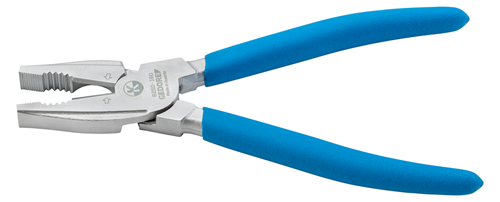

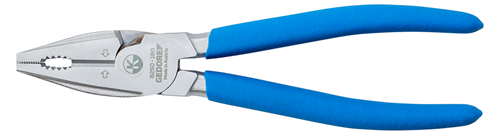

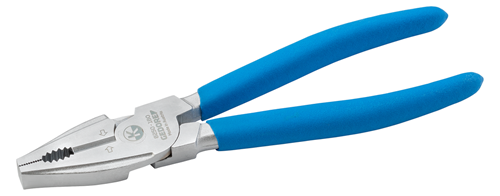

Power combination pliers, dip-insulated, 180 mm, chrome-plated
8250-180 TC
/ Code no. 3462757
Power combination pliers, dip-insulated, 180 mm, chrome-plated
8250-180 TC
/ Code no. 3462757
Price on request
Product line
EAN
4010886975879
Product description
- Acc. to DIN ISO 5746
- For heavy continuous use
- High leverage for easier work
- Induction hardened precision cutting edges, extra long, cutting edge hardness 62 - 64 HRC
- For round and flat material
- For all wires, also hard wire/piano wire, 1.6 mm
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- JC = chrome-plated, with 2-component handle covers
- TL = steel-grey, with blue dipped non-slip handles
- TC= chrome-plated, with blue dipped plastic coating
- Forceps means 35% less effort
- Gripping surface with file-cut for a particularly effective hold
- Roughly toothed gripping surfaces for securely holding screws, pipes etc.
-
Dimensions and weights
- Total width [mm]: 49 mm
- Total height [mm]: 15 mm
- Total length [mm]: 182 mm
- Weight [kg]: 0,227 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw shape [mm]: flache Backen
- Jaw length L3 [mm]: 38 mm
- Bevel: with
- Joint types: eingelegtes Gelenk
- Handle design: tauchisoliert
- Handle colour: blue
- Hardening process: Induction hardened
- Width of head 1 [mm]: 25,6 mm
- Head thickness [mm] T1: 11,0 mm
- Material: Quenched and tempered steel
- with cutting edge: Yes
- Standard: DIN ISO 5746
- Surface: chrome‑plated
- Blade shape: mit Facette
- Hardness of cutting edge: 62 - 64 HRC
- Cutting values: Piano wire: 2 mm / 12 AWG Hard wire: 2,5 mm / 10 AWG Medium hard wire: 3,4 mm / 8 AWG Soft wire: 5 mm / 4 AWG Cu cable, multi wire cross section: 16 mm² Multi-wire cable Ø: 11 mm
- Width of centres W4 [mm]: 6,5 mm
- Thickness of point: 11,0 mm
