Complex and expensive assembly and maintenance work on critical bolted connections must be carried out safely, quickly, and cost-effectively. For controlled and documented use on precise high-torque bolted connections, GEDORE Torque Solutions is introducing the next generation of its proven LDA series.

For tightening high torques in controlled manufacturing environments and in practical applications, such as in mechanical and plant engineering, shipyards, or heavy industry, the two new machines, LDA3/LAW3 and LDA3/LAW3 Solution Core, offer enhanced performance. GEDORE's proprietary hardware and software provide maximum flexibility for updates. With an ergonomically optimized handle, the high-torque cordless screwdrivers are even easier and more user-friendly to operate. This is further enhanced by the 360° rotating drive unit and the low-maintenance design with brushless technology.

In addition to the analog LDA3/LAW3 screwdriver, a digital version of the high-torque cordless screwdriver is also available. The LDA3/LAW3 Solution Core impresses with its immediate readiness for use, exceptional ease of operation, and uncompromisingly ergonomic design. The 360° rotating motor unit facilitates work in hard-to-reach areas. The continuously variable torque control ensures maximum precision. Combined with a brushless motor, a robust two-speed gearbox, and a powerful 18-volt lithium-ion battery, the screwdriver delivers powerful performance – and saves valuable time in everyday work.

The continuous development of the product is largely based on customer feedback and is specifically tailored to their practical requirements.

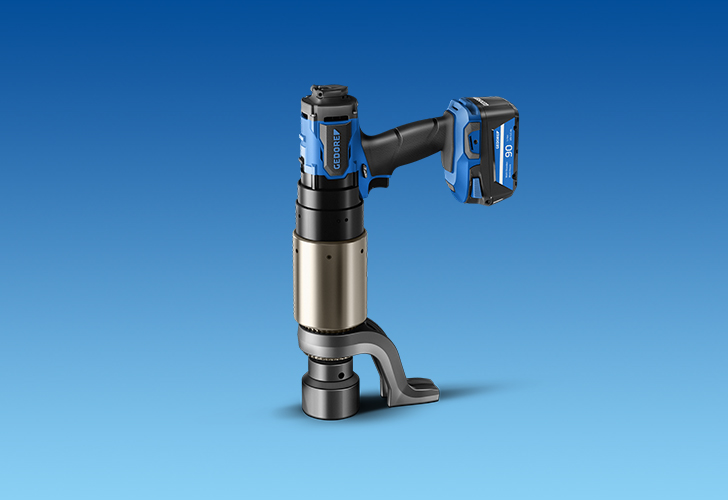

Analog Cordless Wrench LDA3/LAW3

• Torque range from 90 to 8,000 Nm (other torque ranges available on request)
• Powerful 90 Wh (18 V/5 Ah) lithium-ion battery
• Individual test certificate
• Steplessly adjustable torque with proven scale
• More powerful drive
• Torque measurement via current consumption
• Torque adjustment via potentiometer dial
• Low maintenance due to brushless technology
• Proprietary microprocessor-controlled shut-off electronics
• 2-speed gearbox
• Compact, ventilated housing
• Ergonomic handle for safe operation

Digital Cordless Screwdriver LDA3/LAW3 Solution Core

• Torque 90 to 8,000 Nm
• Individual test certificate
• High tightening accuracy thanks to intelligent system integration
• More powerful drive
• Torque/Torque Angle function
• Infinitely variable torque adjustment on the digital transflective color display
• Four-button control panel with hotkeys
• Ergonomic handle for safe working
• Two-hand operation can be activated
• Menu languages: German and English, other languages in preparation
