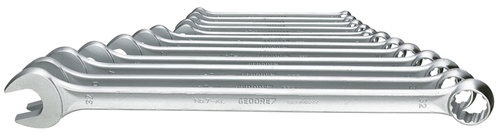

Combination wrench set extra long 12 pieces 10-32 mm
7 XL-012
/ Code no. 6095950
Combination wrench set extra long 12 pieces 10-32 mm
7 XL-012
/ Code no. 6095950
Price on request
Product line
EAN
4010886609590
Product description
- Acc. to DIN 3113, Form A, ISO 3318, ISO 7738
- Vanadium steel 31CrV3, chrome-plated
- Carefully forged and professionally machined
- Slim jaws and slender jaw walls make the spanner lighter overall
- Overloading indicated by deformation
- Secure grip thanks to hollow shaft - very ergonomic and handy
- Glare-free appearance due to matt chrome
- Carefully forged and professionally machined
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Ring: 15° offset from shaft, with UD profile for gentle transmission of force
- Extra long shaft for deep range of use and more torque
-
Dimensions and weights
- Weight [kg]: 4,41 kg
-
Scope of delivery
- Parts list (Text): 10 11 12 13 14 17 19 22 24 27 30 32 mm
- Contents (Qty of pieces): 12
-
Technical characteristics
- Material: Chrome‑vanadium steel 31CrV3
- Surface: chrome‑plated
- Compliance: compliant
- Ring profile: UNIT-DRIVE
- Ring angle: 15°
