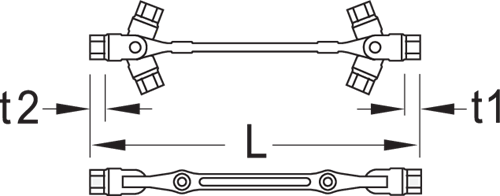

Double joint wrench inside hexagon 12x14 mm
IN 34 12X14
/ Code no. 6302680
Double joint wrench inside hexagon 12x14 mm
IN 34 12X14
/ Code no. 6302680
Price on request
Product line
EAN
4010886630266
Product description
- Swivels through a wide radius
- Shaft with holes for tommy bars 26 D and 26 RS (please order separately)
- Inserts made of chrome-molybdenum steel 42CrMo4, phosphated, shaft chrome-plated
-
Dimensions and weights
- Total length [mm]: 270 mm
- Weight [kg]: 0,336 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Bore Ø [mm]: 10 mm
- Insertion depth 1: 10,0 mm
- Insertion depth 2: 12,0 mm
- Recommended accessories: 26 D 10 Pivot pin 200 mm, Ø 10 mm 26 RS 2 Stepped pivot pin 240 mm, Ø 8 + 10 mm
- Material: Chrome‑molybdenum steel 42CrMo4
- Surface: phosphated chrome‑plated (shaft)
- Compliance: compliant
- Width across flats [AF]: x
- Width across flats [mm]: 12 x 14
- Width across flats 1 [mm]: 12
- Width across flats 2 [mm]: 14
