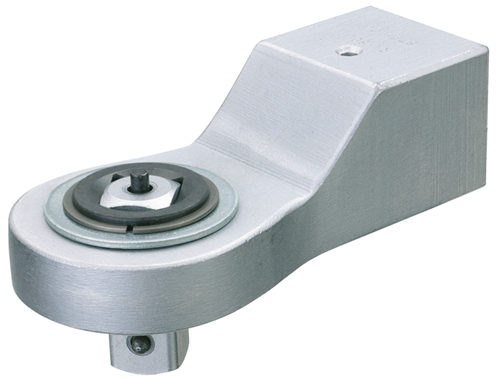

Ratchet head 28 Z - 3/4"
8794-05
/ Code no. 1566032
Ratchet head 28 Z - 3/4"
8794-05
/ Code no. 1566032
Price on request
Product line
EAN
4002805925492
Product description
- For solving difficult assembly problems, easily replaceable
- Chromium vanadium steel
- Matt chrome-plated
- With catch retention
- Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and/or maximum load of cavity
-
Dimensions and weights
- Weight [kg]: 1,656 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector pin: 28 mm
- Drive type/drive: Push-through square with pin
- Drive connector square [metric]: 20 mm
- Drive square inch: 3/4"
- Number of teeth: 36
- Continuous load: 3/4" = 1000 N·m
- Material: Chrome‑vanadium steel
- Compliance: compliant
- Return angle: 10 °
- Depth gauge [metric]: 75,0 mm
