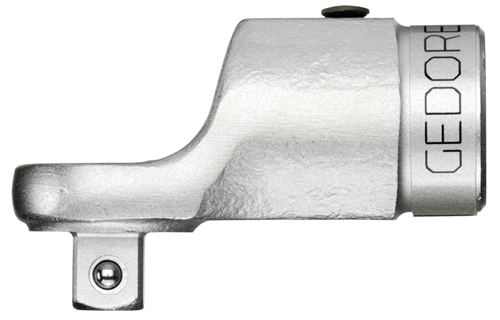

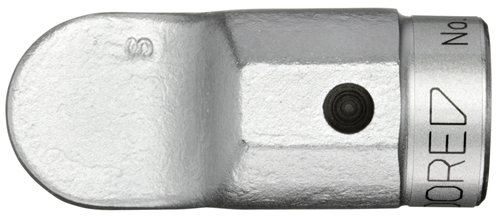

Square attachment Z 16 3/8"
8790-00
/ Code no. 7709490
Square attachment Z 16 3/8"
8790-00
/ Code no. 7709490
Price on request
Product line
EAN
4002805879009
Product description
- For solving difficult assembly problems, easily replaceable
- Forged
- Chromium vanadium steel
- Matt chrome-plated
- With locking pin
- Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and/or maximum load of cavity
-
Dimensions and weights
- Weight [kg]: 0,159 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector pin: 16 mm
- Drive type/drive: Drive pin
- Drive connector square [metric]: 10 mm
- Drive square inch: 3/8"
- Continuous load: 3/8" = 135 N·m
- Material: Chrome‑vanadium steel
- Compliance: compliant
- Depth gauge [metric]: 32,0 mm
