Circlip pliers set in 2/6 CT module, 4 pieces
R22150017
/ Code no. 3301716
Circlip pliers set in 2/6 CT module, 4 pieces
R22150017
/ Code no. 3301716
Price on request
Product line
EAN
4060833017169
Product description
- Acc. to DIN 5254 Form A, straight precision tips, opening spring, DIN 471 for retaining rings, DIN 983 for shaft diameter
- Acc. to DIN 5254 Form B, 90° angled precision tips, opening spring, DIN 471 for retaining rings, DIN 983 for shaft diameter
- Acc. to DIN 5256 Form C, straight precision tips, opening spring, DIN 472 for retaining rings, DIN 984 for shaft diameter
- Acc. to DIN 5256 Form D, 90° angled precision tips, DIN 472 for retaining rings, DIN 984 for drill hole diameter
- Dip-coated handle covers
- Chromium vanadium steel
- In foam module
-
Dimensions and weights
- Total width [mm]: 158 mm
- Total length [mm]: 310 mm
- Weight [kg]: 0,9 kg
-
Scope of delivery

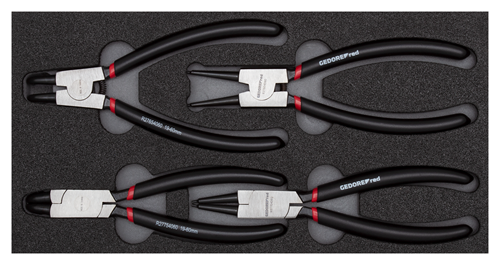

- Parts list (Text): External circlip pliers, straight 19-60 mm External circlip pliers, angled 19-60 mm Internal circlip pliers, straight 19-60 mm Internal circlip pliers, angled 19-60 mm
- Storage: Foam module
- Contents (Qty of pieces): 4
-
Technical characteristics
- Material: Foam
- Compliance: compliant
