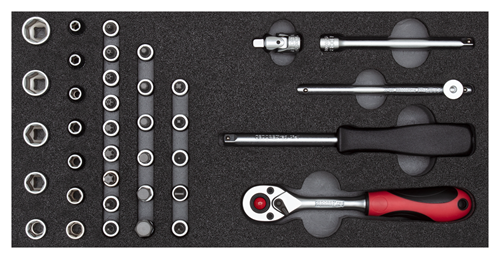

Socket wrench set 1/4" in 2/6 CT module 37 pieces
R22150006
/ Code no. 3301705
Socket wrench set 1/4" in 2/6 CT module 37 pieces
R22150006
/ Code no. 3301705
Price on request
Product line
EAN
4060833017053
Product description
- Coupler based on DIN 3120 - A 6.3, ISO 1174, with ball lock
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- 2C reversible ratchet 1/4": lever for reversible right and left hand operation, push button release, fine-toothed, oval head, dual-meterial handle, hands-friendliy transfer of force, for sockets
- Square plug-in handle 1/4", 1-component handle with female square
- Socket 1/4" hexagon: Metric, short, to DIN 3124, ISO 2725
- Screwdriver bit socket 1/4" for in-hex screws: Pressed-in, phosphated pin
- Screwdriver bit socket 1/4" slot: With pressed-in, phosphated pin
- Screwdriver bit socket 1/4" PH: with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" PZ: with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" TX with hole: With pressed-in, phosphated pin
- Socket extension 1/4"
- Sliding T-handle with slide 1/4": Acc. to DIN 3122, ISO 3315
- Universal joint 1/4": Joint bolted on, design to DIN 3123 - C 6.3
- Chrome-vanadium steel, matt satin chrome-plated
- For hand-operated screw work
- In foam module
-
Dimensions and weights
- Total width [mm]: 158 mm
- Total length [mm]: 310 mm
- Weight [kg]: 1,02 kg
-
Scope of delivery
- Parts list (Text): 1/4" 2C lever reversible ratchet, fine-toothed, 72 teeth | 150 mm 1/4" square plug-in handle 165 mm 1/4"socket wrench insert hexagon 4 4.5 5 5.5 6 7 8 9 10 11 12 13 1/4"screwdriver bit socket hexagon socket 3 4 5 6 8 10 | 37 mm 1/4"screwdriver bit socket slotted 5.5 6.5 | 37 mm 1/4" screwdriver bit socket cross-slotted PH 1 2 3 | 37 mm 1/4"screwdriver bit socket cross recess PZ 1 2 | 37 mm 1/4" screwdriver bit socket TX with bore T10 T15 T20 T25 T27 T30 T40 | 37 mm 1/4"socket wrench extension 100 mm 1/4" T-handle with sliding piece | 115 mm 1/4"universal joint | 32 mm
- Storage: Foam module
- Contents (Qty of pieces): 37
-
Technical characteristics
- Material: Foam
- Compliance: compliant
