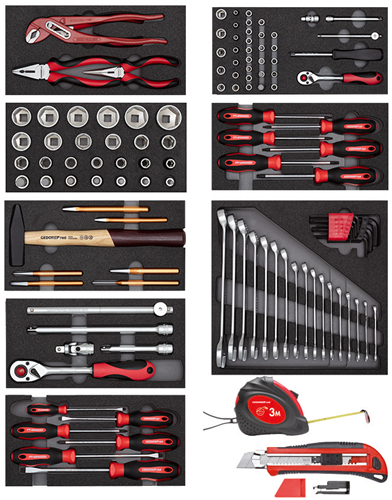

Tool set 119 pcs in plastic modules
R21010001
/ Code no. 3301656
Tool set 119 pcs in plastic modules
R21010001
/ Code no. 3301656
Price on request
Product line
EAN
4060833016568
Product description
- 2C reversible ratchet 1/4": To DIN 3120 - A 6.3, ISO 1174, lever for right and left-hand operation, push button release, fine-toothed, oval form, 2-component-handle
- Square plug-in handle 1/4", 1-component handle with female square
- Socket 1/4" hexagon: Metric, short, to DIN 3124, ISO 2725
- Screwdriver bit socket 1/4" for in-hex screws: Pressed-in, phosphated pin
- Screwdriver bit socket 1/4" slotted, PH, PZ, TX with drill hole: Pressed-in, phosphated pin
- Socket extension 1/4"
- Sliding T-handle with slide 1/4": Acc. to DIN 3122, ISO 3315
- Universal joint 1/4": Joint bolted on, design to DIN 3123 - C 6.3
- 2C reversible ratchet 1/2": To DIN 3120 - A 12,5, ISO 1174, lever for right and left-hand operation, push button release, fine-toothed, oval form, 2-component-handle
- Socket extension 1/2"
- Sliding T bar 1/2", with slide, to DIN 3122, ISO 3315
- Universal joint 1/2": Joint bolted on, design to DIN 3123 - C 12,5
- Socket, hex: Metric, short, to DIN 3124, ISO 272
- Screwdriver bit socket 1/2" for in-hex screws: Pressed-in, phosphated pin
- Combination spanner: To DIN 3113, Form A ISO 3318, ISO 7738, ring side angled 15° jaw position, surface matt satin, plate-chromed
- Hexagon socket key set: To DIN ISO 2936, hardened throughout, phosphated
- Chromium vanadium steel
- Water pump pliers: To DIN 8976 Form C, lengthways-serrated gripping surfaces, box joint, 7 settings, chrome vanadium steel, powder-coated
- Combination pliers: To DIN ISO 5746, inductively hardened cutting edges, 2-component-handle, forged
- Bent nose telephone pliers: To DIN ISO 5745, straight gripping surfaces, lengthways-serrated, inductively hardened cutting edges, 2-component-handle, forged
- Side cutters: To DIN ISO 5749, slender head, inductively hardened, long cutting edges, 2-component-handle, forged
- Engineers’ hammer: Forged hammer head of tempered steel, inductively hardened striking surfaces, to DIN 1041, ash handle, paint-coated shaft end, ring wedge
- Flat cold chisel, flat oval: To DIN, cutting edge and head ground, impact end tempered, chrome-vanadium steel
- Cross-cut chisel, flat oval: To DIN 6451, cutting edge, sides and head ground, impact end tempered, chrome-vanadium steel
- Hexagonal punch: To DIN 6458, impact end annealed, chrome-vanadium steel
- Centre punch, hexagonal: To DIN 7250, impact end annealed, chrome-vanadium steel
- Pin punch, octagonal: To DIN 6450, impact end annealed, chrome-vanadium steel
- 2C screwdriver slotted and PH: To DIN, high-grade chrome-molybdenum steel blade, chrome-plated, phosphated driven tip, 2-component-handle, 5-edge grip head, elongated hole in handle
- 2C screwdriver TX: Chrome-molybdenum steel blade, chrome-plated, phosphated driven tip, 2-component-handle, 5-edge grip head, elongated hole in handle
- Tape measure: ABS dual-material housing, clip, nylon-coated tape, mm-graduation, with tape rewind and lock, magnetic stop, Accuracy Class II
-
Dimensions and weights
- Weight [kg]: 14 kg
-
Scope of delivery
- Parts list (Text): R22150018 Set of pliers in 1/3 in foam module R22150006 Socket wrench set 1/4" in 1/3 in foam module R22150009 Socket wrench set 1/2" in 1/3 in foam module R22150013 Screwdriver set in 1/3 in foam module R22150019 Hammer and chisel set in 1/3 in foam module R22150008 Ratchet with accessories 1/2" in 1/3 in foam module R22150015 Screwdriver set in 1/3 in foam module R22250000 Combination wrench set and offset screwdriver in 2/3 in foam module R93200025 Cutter knife with 5 spare blades R94550003 Roll tape measure 3 m
- Storage: Foam module
- Contents (Qty of pieces): 119
-
Technical characteristics
- Material: Foam
- Compliance: compliant
