Mounting kit, KL-5501 B, Modulo / wall, adjustable
KL-5501-210
/ Code no. 3461068
Mounting kit, KL-5501 B, Modulo / wall, adjustable
KL-5501-210
/ Code no. 3461068
Price on request
Product line
EAN
4046459198536
Product description

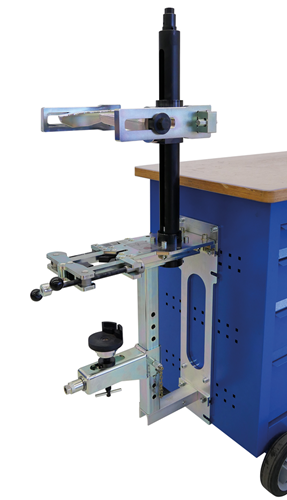

- Enables mobile assembly of the stationary spring compressor KL-5501 B / C, optionally in three different height positions, on a MODULO tool/assembly trolley (KL-4999-120 A / KL-4999-121 A / GEDORE 1507 XL).
- Alternatively also for space-saving wall mounting.
- However, due to the proximity to the wall, the use of a hand ratchet is only possible up to a return angle of approx. 180° and using the hand crank KL-5501-40 is excluded!
- If necessary, use the long wall bracket KL-5501-212.
-
Dimensions and weights
- Weight [kg]: 10 kg
-
Scope of delivery

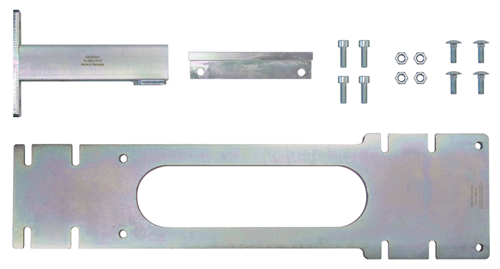

- Parts list (Text): 1x KL-5501-211 - Mounting kit, KL-5501 B 1x KL-5501-213 - Mounting plate, MODULO
- Contents (Qty of pieces): 15
-
Technical characteristics
- Distance centre drive to wall [mm]: 105 mm
- Number of setting positions: 3
- Suitability: universal
- Suitable for: Specially designed for the stationary spring compressor KL-5501 B / C. (Not for KL-5501)
