Fixing lever with guide pin
KL-0243-10
/ Code no. 3238768
Fixing lever with guide pin
KL-0243-10
/ Code no. 3238768
Price on request
Product line
EAN
4046459165835
Product description

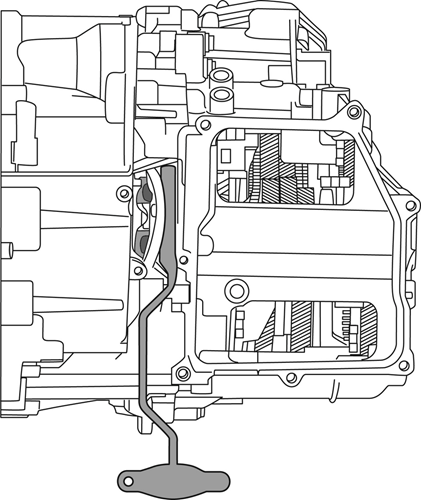

- Necessary for pre-tensioning and fixing the clutch engagement lever during removal and installation of the mechatronics unit on the DSG gearbox.
- The guide bolts included in the scope of delivery, ensure a straight aligned installation of the mechatronics unit.
-
Scope of delivery

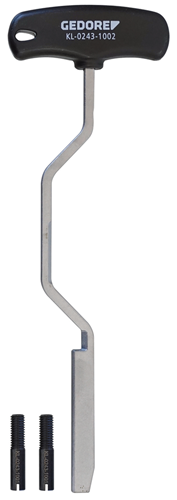

- Parts list (Text): 1x KL-0243-1002 - Fixing level for plunger 2x KL-0243-1001 - Guide bolt
- Contents (Qty of pieces): 3
-
Technical characteristics
- Suitability: Audi Seat Skoda VW
- Length basic tool: 270 mm
- Suitable for: Suitable for VW-Audi, Seat, and Škoda with transversely mounted 7-speed double clutch gearbox (0AM). Installed in, e.g. Audi A3 (8P); VW Polo (6R, 6C), Golf (1K), Golf Plus (1KP), Touran (1T), Eos (1F), Passat (3C), Passat CC (35), Scirocco (13); Seat Ibiza V (KJ), Toledo (5P); Skoda Fabia (5P), Octavia (1Z) etc.
