Forcing Wheel Press / Body Press
KL-1029-20 A
/ Code no. 3412865
Forcing Wheel Press / Body Press
KL-1029-20 A
/ Code no. 3412865
Price on request
Product line
EAN
4046459179023
Product description

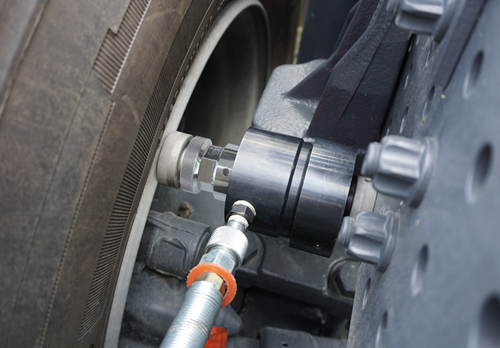

- With the powerful 17 ton press, stuck wheels can be quickly and easily pressed off the wheel hub.
- The compact design allows various straightening operations on car body parts to be carried out professionally and precisely in confined spaces.
- The press can be variably adjusted in length from 120 to 250 mm by using the thrust pieces and extensions as well as the micro adjustment of the threads.
- Additional safety is provided by the safety harness which is available as an accessory.
-
Dimensions and weights
- Weight [kg]: 4,6 kg
-
Scope of delivery

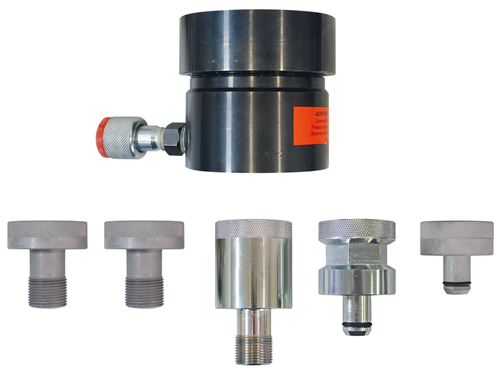

- Parts list (Text): 1x KL-0040-1700 Hydr. Cyl. 17t short 1x KL-1029-2001 extension with O-ring 2x KL-1029-2002 pressure piece with thread 1x KL-1029-2003 - Extension with thread 1x KL-1029-2004 pressure piece with O-ring
- Contents (Qty of pieces): 6
-
Technical characteristics
- Drive type: hydraulic
- Execution: stepless
- Load (max.) [t]: 17 t
- Suitability: universal
- Required accessories: KL-0215-35 M25 - Hydraulic Pump
- Stroke: 15 mm
- Suitable for: Fits universally for commercial vehicles, municipal vehicles, agricultural machinery, and passenger cars.
