Wheel Hub Lifting Tool, HGV
KL-1029-300
/ Code no. 3413071
Wheel Hub Lifting Tool, HGV
KL-1029-300
/ Code no. 3413071
Price on request
Product line
EAN
4046459179139
Product description

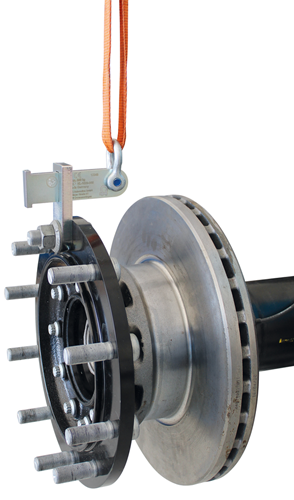

- The wheel hub lifting adaptor enables easy and back-friendly lifting of heavy wheel hubs of commercial vehicle and trailer axles with the aid of a workshop crane and without the assistance of a second person.
- The lifting tool can be infinitely adjusted to keep the wheel hub exactly in balance.
- Advantageous e.g. for disassembling and assembling the wheel hub as well as for changing brake discs.
-
Dimensions and weights
- Total length [mm]: 148 mm
- Weight [kg]: 1,1 kg
-
Scope of delivery

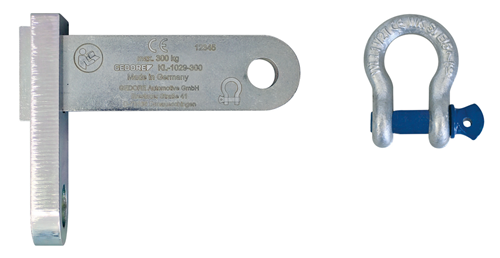

- Parts list (Text): 1x KL-1029-3001 - Base plate 1x KL-1029-3002 - Retainer plate 1x KL-1029-3003 - Shackle
- Contents (Qty of pieces): 3
-
Technical characteristics
- Execution: stepless
- Load (max.) [kg]: 300 kg
- Bore Ø [mm]: 23 mm
- Suitability: universal
- Suitable for: Universally suitable for commercial vehicles, semi-trailers and trailers.
- Adjustment range: 110 mm
