Wheel bearing tool, Mercedes Vito / Viano, front axle
KL-0041-522 K
/ Code no. 3441377
Wheel bearing tool, Mercedes Vito / Viano, front axle
KL-0041-522 K
/ Code no. 3441377
Price on request
Product line
EAN
4046459193265
Product description
- For quick and professional removal and installation of wheel bearing and wheel hub directly on the vehicle.
-
Dimensions and weights
- Total width [mm]: 357 mm
- Total height [mm]: 151 mm
- Total length [mm]: 442 mm
- Weight [kg]: 10 kg
-
Scope of delivery

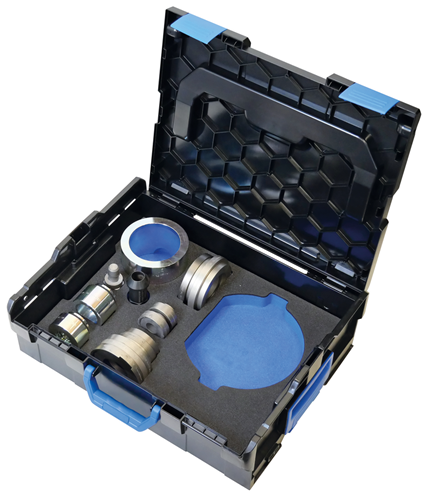

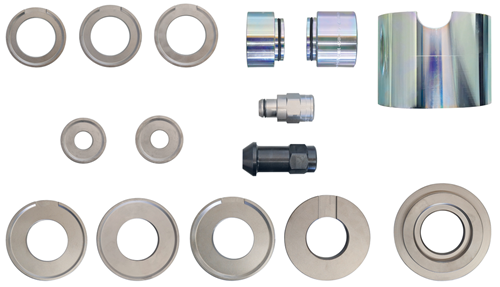

- Parts list (Text): 1X KL-0039-1002 - Mounting adapter 1x KL-0039-1003 - Mounting adapter 1x KL-0039-1270 - Thrust ring, Ø 70 mm 1x KL-0039-1273 - Thrust ring, Ø 73 mm 1x KL-0039-1274 - Thrust ring, Ø 74 mm 1x KL-0039-1290 - Thrust ring, Ø 90 mm 1x KL-0039-1291 - Thrust ring, Ø 91 mm 1x KL-0039-1350 - Centring ring, Ø 50 mm 1x KL-0039-1352 - Centring ring, Ø 52 mm 1x KL-0039-1401 - Bearing cover 1x KL-0039-1403 - Housing 1x KL-0039-1501 - Centring ring 1x KL-0039-1502 - Thrust ring, Ø 93 mm 1x KL-0039-1920-4 - Clamping nut, Ø 38 mm 1x KL-0041-5041 - Clamping nut 1x KL-0041-5229 - Foam insert 1x KL-4600-1094 - Plastic case, empty
- Storage: L-BOXX
- Contents (Qty of pieces): 15
-
Technical characteristics
- Drive type: hydraulic
- Load (max.) [t]: 17 t
- Suitability: Mercedes
- Required accessories: Hydraulic drive (17 t): KL-0039-1920-1 A - Pull spindle, M20 KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump

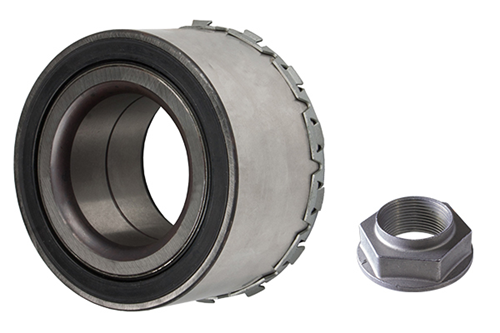

- Suitable for: Suitable for wheel bearings and wheel hubs with centre bore on the front axle, for example, with Mercedes V-Class/Vito (W447), Vito/Viano (W639) with front-wheel as well as with all-wheel drive.
