Wheel bearing tool, Mercedes Vito / Viano, front axle
KL-0041-521 K
/ Code no. 3441350
Wheel bearing tool, Mercedes Vito / Viano, front axle
KL-0041-521 K
/ Code no. 3441350
Price on request
Product line
EAN
4046459193241
Product description
- For quick and professional removal and installation of wheel bearing unit directly on the vehicle.
- The particular construction of the tool particularly enables the removal and installation of wheel bearing units without centre bore.

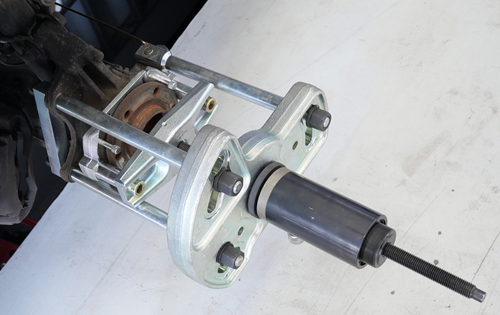

- Thereby the wheel bearing unit is directly pulled out via the wheel hub and pressed in again damage-free via the outer ring of the wheel bearing.
- Currently, only complete steering knuckles with pre-assembled wheel bearing units are offered by the vehicle manufacturer for repairs.
- A wheel alignment required as a result entails further consequential costs.

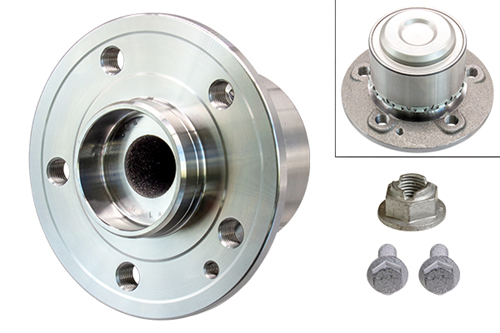

- The wheel bearing tool together with a wheel bearing unit from FAG (Schaeffler Automotive Aftermarket) offers a significantly more cost-effective repair solution.
-
Dimensions and weights
- Total width [mm]: 357 mm
- Total height [mm]: 151 mm
- Total length [mm]: 442 mm
- Weight [kg]: 34 kg
-

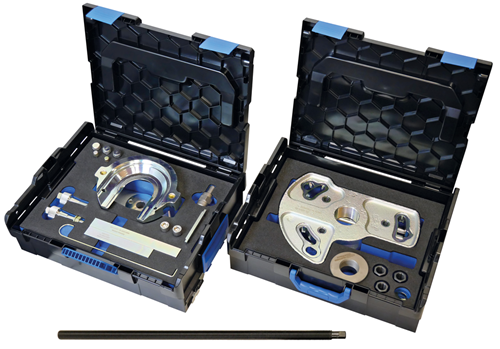

Scope of delivery
- Parts list (Text): 1x KL-0041-5001 - Base plate 1x KL-0041-5002 - Support rod, cross hole 2x KL-0041-5009 - Support rod, 275 mm 3x KL-0041-5006 - Collar nut M18 1x KL-0041-5010 - Adapter 4x KL-0041-5004 - Washer, Ø 19 mm 1x KL-0041-5012 - Steering knuckle retaining bracket 2x KL-0041-5005 - Cylinder screw, M14x70 1x KL-0041-5003 - Screw with cone, M16 1x KL-0041-5014 - Screw with cone, M12 1x KL-0035-0023 - Nut, M12 1x KL-0066-0004 - Washer, Ø 12 mm 1x KL-0041-5007 - Reinforcement slat, 140 mm 1x KL-0041-5008 - Reinforcement slat, 196 mm 1x KL-0041-5013 - Clamping nut 1x KL-0041-5030-2 - Closing plate 3x KL-0041-5024 - Knurled screw, M14 2x KL-0041-5025 - Retaining pin 1x KL-0041-503 - Pull / pressure plate, Ø 92 mm 1x KL-0039-1920-1 A - Pull spindle, M20 1x KL-0041-5211-9 - Foam insert 1x KL-0041-5212-9 - Foam insert 2x KL-4600-1094 - Plastic case, empty
- Storage: L-BOXX
- Contents (Qty of pieces): 28
-
Technical characteristics
- Drive type: hydraulic
- Load (max.) [t]: 17 t
- Suitability: Mercedes
- Required accessories: Hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump
- Suitable for: Suitable for wheel bearing units without centre bore on the front axle, for example with Mercedes Vito/V-Class (W447) and Vito/Viano (W639) with rear drive.
