Wheel Hub Puller
KL-0041-380 EA
/ Code no. 3277631
Wheel Hub Puller
KL-0041-380 EA
/ Code no. 3277631
Price on request
Product line
EAN
4046459173038
Product description

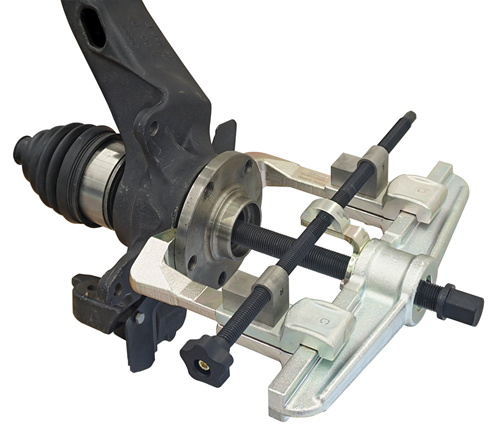

- The wheel hub extractor enables wheel bearings, wheel hubs as well as wheel bearing units with a diameter of up to 250 mm to be pulled out of a wheel bearing housing quickly and easily directly on the vehicle.
- For the construction, which can bear a load of up to 12 tonnes, it does not matter whether they are rusted, glued or fitted with a locking ring.
- This tool can be also used for mechanically forcing out the cardan shaft.
- The installation can be done e.g. with the wheel bearing tools from the KL-0039-.. or KL-0041-..series.
-
Dimensions and weights
- Total width [mm]: 305 mm
- Total height [mm]: 105 mm
- Total length [mm]: 445 mm
- Weight [kg]: 8 kg
-
Scope of delivery

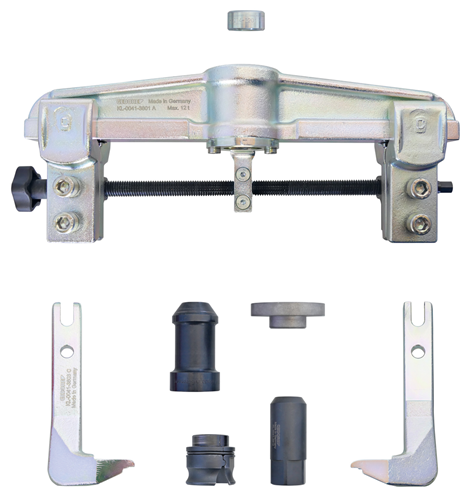

- Parts list (Text): 1x KL-0041-3800 A - Wheel hub puller basic device with adjusting spindle 1x KL-0214-2202 - Spacer ring 30 mm dia. 1x KL-0041-3812 - Clamping nut 30 mm dia. 1x KL-0039-2192 - Conical adapter 37 mm dia. 1x KL-0039-2120-2 - Quick-clamping nut M20 1x KL-0039-1506 - Thrust ring 60 mm dia. 1x KL-4999-1315 - Foam insert

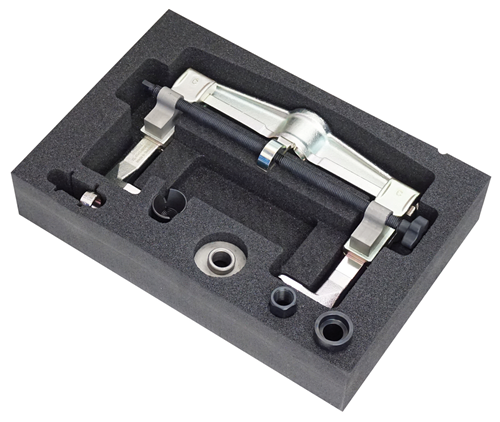

- Storage: Foam insert
- Contents (Qty of pieces): 8
-
Technical characteristics
- Drive type: hydraulic mechanical
- Load (max.) [t]: 12 t
- Suitability: universal

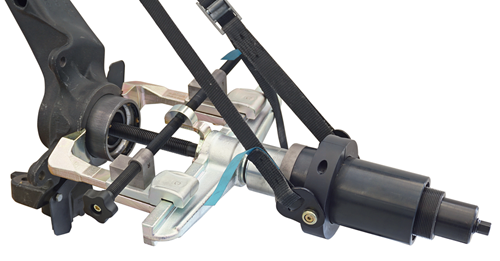

- Required accessories: Hydraulic drive (17 t): KL-0215-35 M25 - Hydraulic pump KL-0040-2500 - Hydraulic cylinder 17 t KL-0039-1003 - Adapter KL-0039-1920-1 - Pull spindle mechanical drive: KL-0039-1011 Mounting adapter KL-0039-2030 - Pull spindle
- for Ø (max.) [mm]: 250 mm
- Note: Accessorie for forcing off the cardan shaft, for wheel hubs with a flat contact surface at the rear: Pressure Spindle - 1.2606280KS (Code:1546910)

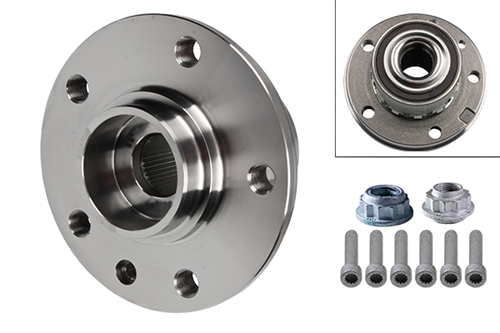

- Suitable for: Universally suitable for 1st generation wheel bearings and wheel hubs as well as 2nd generation compact wheel bearings on cars and vans. Also suitable for bolted compact wheel bearings (3rd generation) in conjunction with extension kit KL-0041-384.
