Adapter set 5 pieces
S 2032-05
/ Code no. 1729071
Adapter set 5 pieces
S 2032-05
/ Code no. 1729071
Price on request
Product line
EAN
4010886840221
Product description
- With reducers and enlargers from 1/4" to 3/4"
- Reducers 1930, 3020
- Enlarger pieces 2030, 3019, 1932

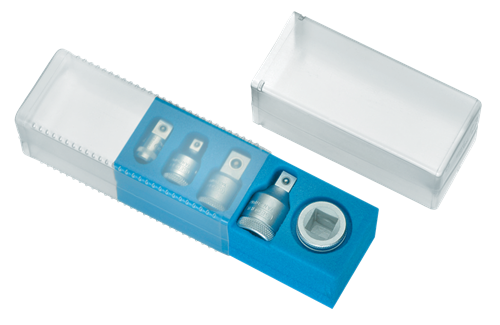

- In transparent plastic box, dimensions: L 134 x W 51 x H 51 mm, foam insert light-blue
- Please note the maximum load capacities of the outer square edge according to DIN 3123, ISO 3316
-
Dimensions and weights
- Total width [mm]: 51 mm
- Total height [mm]: 51 mm
- Total length [mm]: 134 mm
- Weight [kg]: 0,32 kg
-
Scope of delivery
- Parts list (Text): 2030 1/4" - 3/8" Adaptor (max. 62 Nm) 3019 3/8" - 1/2" Adaptor (max. 202 Nm) 1932 1/2" - 3/4" Adaptor (max. 512 Nm) 3020 3/8" - 1/4"Reducer (max. 62 Nm) 1930 1/2" - 3/8" Reducer (max. 202 Nm)
- Contents (Qty of pieces): 5
-
Technical characteristics
- Drive connector hexagon [metric]: 1/4" 3/8" 1/2"
- Compliance: compliant
