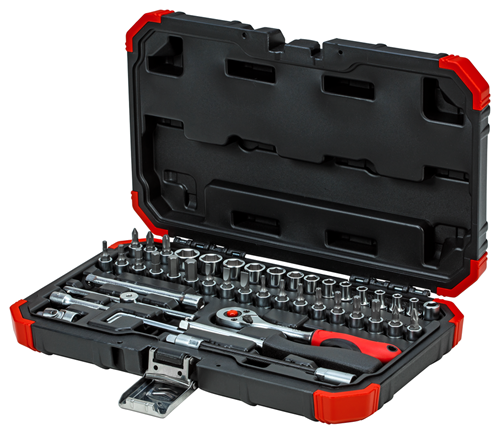

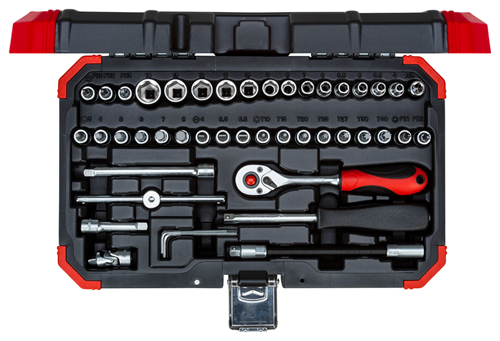

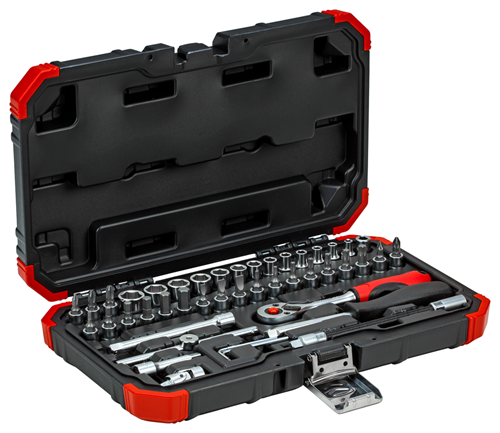

Socket wrench set 1/4" 46 pieces 4-14 mm
R49003046
/ Code no. 3300052
Socket wrench set 1/4" 46 pieces 4-14 mm
R49003046
/ Code no. 3300052
Price on request
Product line
EAN
4060833000529
Product description
- Coupler based on DIN 3120 - A 6.3, ISO 1174, with ball lock
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- 2C reversible ratchet 1/4", lever for reversing clockwise/anticlockwise direction, push-button release, fine-toothed, oval head, 2-component-handle for ease in handling, for sockets
- Square plug-in handle 1/4", 1-component handle with female square
- Socket 1/4", hex, metric: short, as per DIN 3124, ISO 2725
- Screwdriver bit socket 1/4", for hex screws, with pressed-in, phosphated pin
- Screwdriver bit socket 1/4": slotted, with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" PH: with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" PZ: with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" TX with pressed-in, phosphated pin
- Socket extension 1/4"
- Flexible socket wrench extension 1/4
- Sliding T-handle with slide 1/4": Acc. to DIN 3122, ISO 3315
- Universal joint 1/4": Joint bolted on, design to DIN 3123 - C 6.3
- Bit adaptor 1/4", with in-hex and female square, for all bits and tools with 1/4" external hex
- Hexagon socket key set hexagon: Design according to DIN ISO 2936
- Chrome-vanadium steel, matt satin chrome-plated
- For hand-operated applications

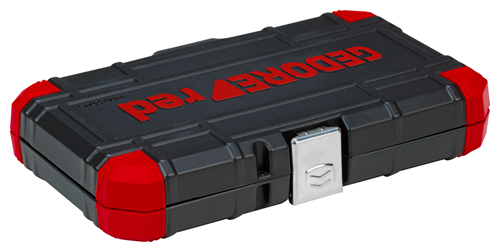

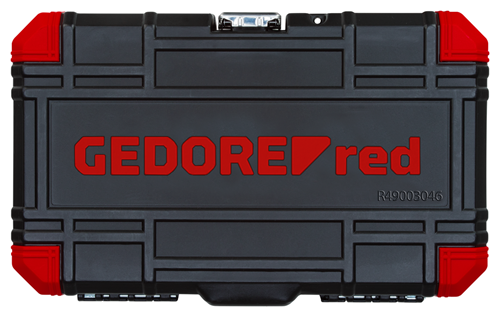

- Plastic case in GEDORE red Design
- Clamp-secured tools
- Metal hinges/fastener
-
Dimensions and weights
- Total width [mm]: 185 mm
- Total height [mm]: 54 mm
- Total length [mm]: 298 mm
- Weight [kg]: 1,414 kg
-
Scope of delivery
- Parts list (Text): 1/4" 2C reversible lever ratchet fine-toothed, 72 teeth | 150 mm 1/4" square socket 165 mm 1/4" socket hexagon 4 4,5 5 5,5 6 7 8 9 10 11 12 13 14 | 25 mm 1/4" screwdriver bit socket hexagon socket inner 3 4 5 6 | 37 mm 1/4" screwdriver bit socket slot 4 5,5 6,5 | 37 mm 1/4" Screwdriver bit socket Phillips PH 1 2 3 | 37 mm 1/4" Screwdriver bit socket PZ 1 2 | 37 mm 1/4" Screwdriver bit socket TX T15 T20 T25 T30 | 37 mm 1/4" Socket wrench extension 50 100 mm 1/4" Cardan joint | 32 mm Bit-Adapter 1/4" square x 1/4" hexagon | 25 mm
- Contents (Qty of pieces): 46
-
Technical characteristics
- Drive connector square [metric]: 6,3 mm
- Drive square inch: 1/4"
- Compliance: compliant
