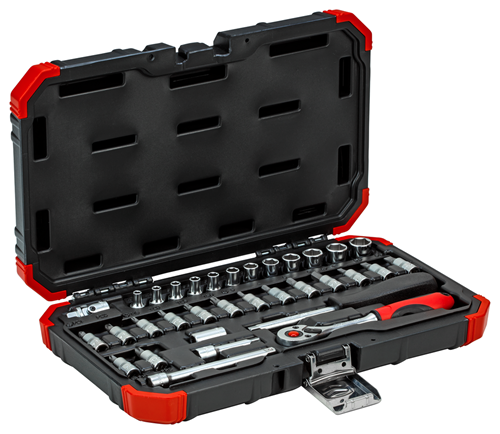

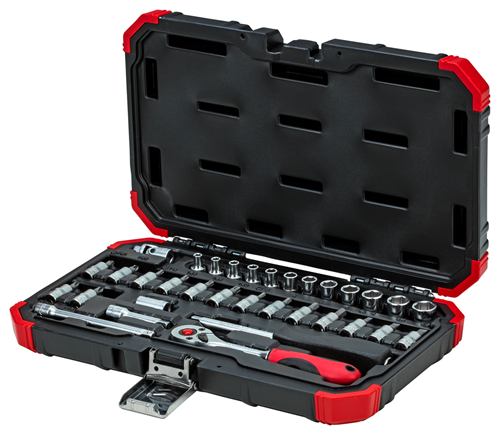

Socket wrench set 1/4" 33 pieces 4-13 mm
R49003033
/ Code no. 3300051
Socket wrench set 1/4" 33 pieces 4-13 mm
R49003033
/ Code no. 3300051
Price on request
Product line
EAN
4060833000512
Product description
- Coupler based on DIN 3120 - A 6.3, ISO 1174, with ball lock
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- 2C reversible ratchet 1/4", lever for reversing clockwise/anticlockwise direction, push-button release, fine-toothed, oval head, 2-component-handle for ease in handling, for sockets
- Square plug-in handle 1/4", 1-component handle with female square
- Socket 1/4", hex, metric: short, as per DIN 3124, ISO 2725
- Screwdriver bit socket 1/4", for hex screws, with pressed-in, phosphated pin
- Screwdriver bit socket 1/4": slotted, with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" PH: with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" PZ: with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" TX with pressed-in, phosphated pin
- Socket extension 1/4"
- Universal joint 1/4": Joint bolted on, design to DIN 3123 - C 6.3
- Bit adaptor 1/4", with in-hex and female square, for all bits and tools with 1/4" external hex
- Chrome-vanadium steel, matt satin chrome-plated
- For hand-operated screw work

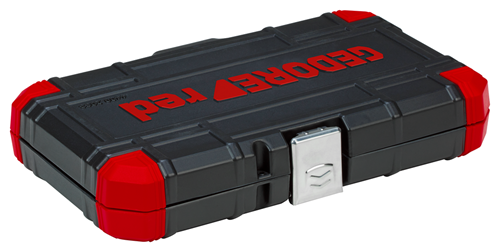

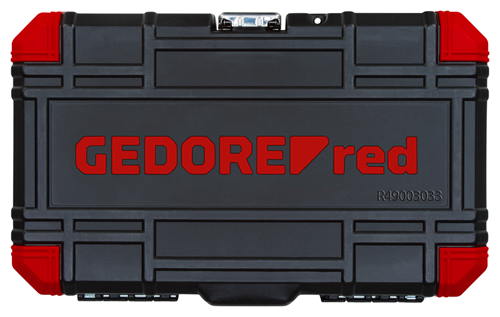

- Plastic case in GEDORE red Design
- Clamp-secured tools
- Metal hinges/fastener
-
Dimensions and weights
- Total width [mm]: 298 mm
- Total height [mm]: 54 mm
- Total depth [mm]: 185 mm
- Total length [mm]: 300 mm
- Weight [kg]: 1,23 kg
-
Scope of delivery

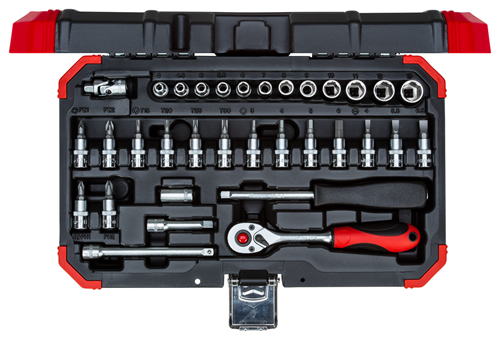

- Parts list (Text): 1/4" 2C lever reversible ratchet, fine-toothed, 72 teeth | 150 mm 1/4" square plug-in handle 165 mm 1/4" socket hexagon 4 4.5 5 5.5 6 7 8 9 10 11 12 13 25 mm 1/4" screwdriver bit socket in-hex 3 4 5 6 | 37 mm 1/4" screwdriver bit socket slotted 4 5.5 6.5 | 37 mm 1/4" screwdriver bit socket cross-head PH 1 2 | 37 mm 1/4" screwdriver bit socket cross-head PZ 1 2 | 37 mm 1/4" screwdriver bit socket TX T15 T20 T25 T30 | 37 mm 1/4" socket extension 50 100 mm 1/4" universal joint | 32 mm Bit adapter 1/4" sq. x 1/4" hex | 25 mm
- Contents (Qty of pieces): 33
-
Technical characteristics
- Drive connector square [metric]: 6,3 mm
- Drive square inch: 1/4"
- Compliance: compliant
