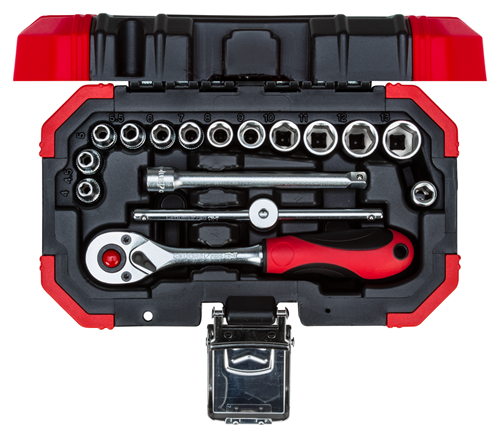

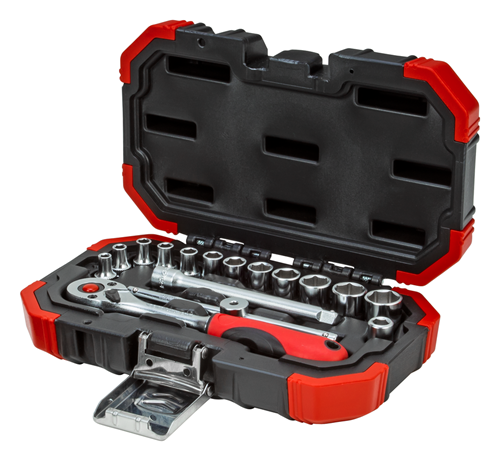

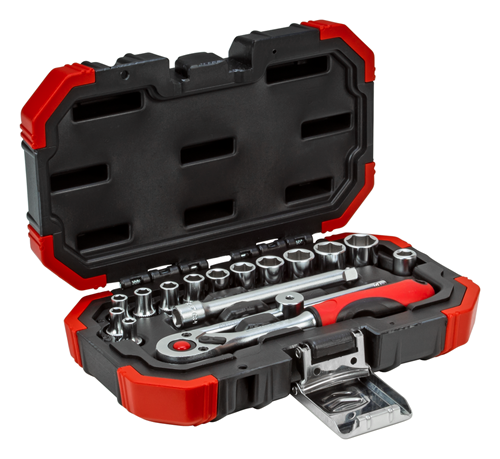

Socket wrench set 1/4" 16 pieces 4-13 mm
R49003016
/ Code no. 3300050
Socket wrench set 1/4" 16 pieces 4-13 mm
R49003016
/ Code no. 3300050
Price on request
Product line
EAN
4060833000505
Product description
- Coupler based on DIN 3120 - A 6.3, ISO 1174, with ball lock
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- 2C reversible ratchet 1/4", lever for reversing clockwise/anticlockwise direction, push-button release, fine-toothed, oval head, 2-component-handle for ease in handling, for sockets
- Socket 1/4", hex, metric: short, as per DIN 3124, ISO 2725
- Socket extension 1/4"
- Sliding T-handle with slide 1/4": Acc. to DIN 3122, ISO 3315
- Bit adaptor 1/4", with in-hex and female square, for all bits and tools with 1/4" external hex
- Chrome-vanadium steel, matt satin chrome-plated
- For hand-operated screw work

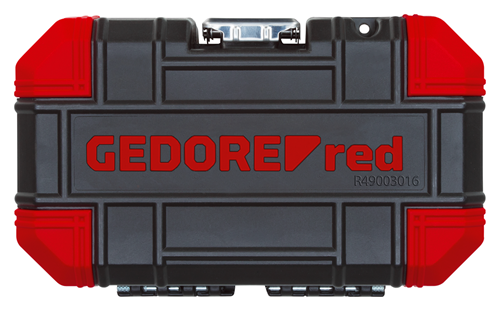

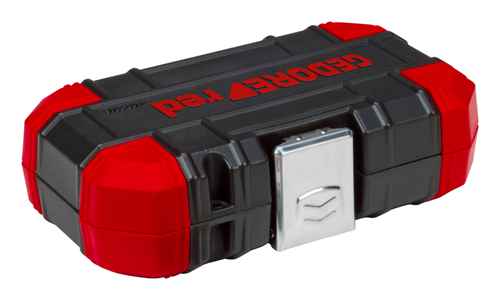

- Plastic case in GEDORE red Design
- Clamp-secured tools
- Metal hinges/fastener
-
Dimensions and weights
- Total width [mm]: 115 mm
- Total height [mm]: 54 mm
- Total length [mm]: 193 mm
- Weight [kg]: 0,62 kg
-
Scope of delivery
- Parts list (Text): 1/4" 2C lever reversible ratchet, fine-toothed, 72 teeth | 150 mm 1/4" Socket hexagon 4 4,5 5 5,5 6 7 8 9 10 11 12 13 | 25 mm 1/4" Socket extension 100 mm 1/4" Sliding T-bar with slider | 115 mm Bit adaptor 1/4" square x 1/4" hexagon | 25 mm
- Contents (Qty of pieces): 16
-
Technical characteristics
- Drive connector square [metric]: 6,3 mm
- Drive square inch: 1/4"
- Compliance: compliant
