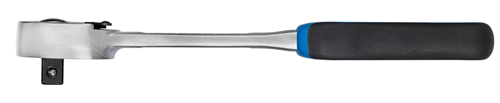

Reversible ratchet 1/2" 270 mm
1993 U-10 T
/ Code no. 6142620
Reversible ratchet 1/2" 270 mm
1993 U-10 T
/ Code no. 6142620
Price on request
Product line
EAN
4010886614266
Product description
- Suitable for robust use in industry and commercial vehicles
- Acc. to DIN 3122, ISO 3315
- With lowered switch lever
- With push button release
- Return angle 7.5°
- Non-slip 2-component handle with suspension hole
- Locks in the middle position: When the lever is flipped, it automatically engages for clockwise or anti-clockwise operation
- For hand-operated sockets and accessories with square drive as per DIN 3120 - C 12.5, ISO 1174, ball locking device
- GEDORE vanadium steel 31CrV3, chromed
-
Dimensions and weights
- Total width [mm]: 43 mm
- Total height [mm]: 38 mm
- Total length [mm]: 270 mm
- Weight [kg]: 0,53 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 12,5 mm
- Drive square inch: 1/2"
- Number of teeth: 48
- Locking tool type: Ball locking device
- Execution: with hanging hole
- Push-button release: Yes
- Handle available: Yes
- Handle design: 2-Components
- Handle colour: blue/black
- Handle material: plastic
- Ratchet head height: 39 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3122 ISO 3315
- Surface: chrome‑plated
- Compliance: compliant
- Return angle: 7,5 °
- Switching type: Changeover lever
