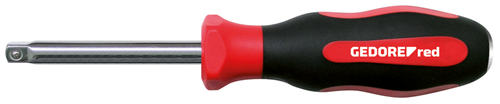

Driving handle 1/4"
R38950001
/ Code no. 3301344
Driving handle 1/4"
R38950001
/ Code no. 3301344
Price on request
Product line
EAN
4060833013444
Product description
- For hand-operated sockets and accessories with square drive as per DIN 3120, ISO 1174, ball locking device
- 2-component-handle for a hands-friendly transfer of force
- Matt chrome-plated
- Coupler in acc. with DIN 3120 - A 6.3, ISO 1174, with ball locking device
- Square socket in handle suitable for ratchet drive with DIN 3120 - C 6.3, ISO 1174, with ball catch groove
- Chromium vanadium steel
-
Dimensions and weights
- Total width [mm]: 31 mm
- Total height [mm]: 31 mm
- Total length [mm]: 160 mm
- Weight [kg]: 0,122 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 6,3 mm
- Drive square inch: 1/4"
- Locking tool type: Ball locking device
- Blade length: 61 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 ISO 1174 DIN 3120 - A 6,3
- Compliance: compliant
