Set of internal and external extractors
2.50
/ Code no. 2017040
Set of internal and external extractors
2.50
/ Code no. 2017040
Price on request
Product line
EAN
4036976123746
Product description
- Suitable for various applications of external or internal extraction
- Internal extractor for drill holes with Ø 5 - 55 mm. To be used with slide hammer or counter support
- External pullers with various spans up to 130 mm for the most diverse pulling problems
- Pulling and separating devices including extensions, ideal for pulling off tightly fitted or thin-walled parts for outside diameters 5 - 115 mm

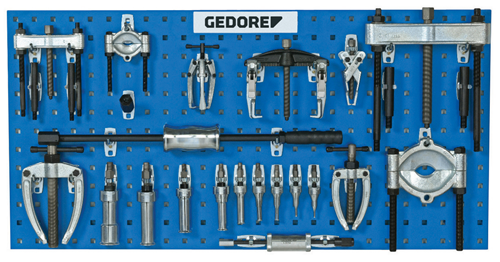

- Everything at hand on perforated wall-board
-
Dimensions and weights
- Weight [kg]: 30,6 kg
-
Scope of delivery
- Parts list (Text): 1 internal extractor 5-8 mm, No. 1.30/0 1 internal extractor 8-12 mm, No. 1.30/1 1 internal extractor 12-15 mm, No. 1.30/2 1 internal extractor 15-19 mm, No. 1.30/3 1 internal extractor 19-25 mm, No. 1.30/4 1 internal extractor 25-30 mm, No. 1.30/4A 1 internal extractor 30-35 mm, No. 1.30/5 1 internal extractor 35-45 mm, No. 1.30/6 1 internal extractor 45-55 mm, No. 1.30/7 1 sliding hammer 230 mm, 700 g, No. 1.35/1A 1 sliding hammer 500 mm, 1,7 kg, No. 1.35/2 1 counter-support brace for 1.30/0 - 1.30/5, No. 1.36/1 1 counter-support brace for 1.30/6 - 1.30/7, No. 1.36/2 1 universal puller HIGH POWER 2-arm pattern 130x100 mm, No. 1.04/HP1A 1 battery-terminal puller, 3-arm pattern 70x80 mm, No. 1.13/00 1 puller with extra slim legs 80x85 mm, No. 1.23/1S 1 separator puller 40-120 mm, No. 1.38/0 1 separator puller 70-215 mm, No. 1.38/2 1 extension rod M10, No. 1.38/AV 1 extension rod M14x1.5, No. 1.38/CV 1 bearing separator 5-60 mm, No. 1.40/0 1 bearing separator 22-115 mm, No. 1.40/2
- Contents (Qty of pieces): 22
-
Technical characteristics
- Execution: incl. perforated panel
- Can be retrofitted with hydraulic spindle: No
