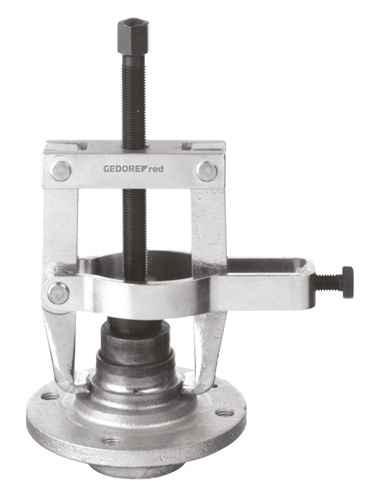

Puller 2-armed with clamp 90x100mm 1t
R17151000
/ Code no. 3301554
Puller 2-armed with clamp 90x100mm 1t
R17151000
/ Code no. 3301554
Price on request
Product line
EAN
4060833015547
Product description
- 2-arm puller,
- With clamping yoke
- Span max.90mm
- Clamping depth max.100mm
- Spindle with hexagonal drive, width across flats 17mm
- U-bolt with hexagon drive, width across flats 17 mm
- The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position
- Chromium vanadium steel
-
Dimensions and weights
- Weight [kg]: 1,001 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Number of arms: 2
- Material: Chrome‑vanadium steel
- Can be retrofitted with hydraulic spindle: No
- Compliance: compliant
- Width across flats [mm]: 17 mm
- Usable clamping reach [mm]: 100 mm
- Clamping width (max.) external pulling [mm]: 90 mm
- Tractive force (max.) [t]: 1
