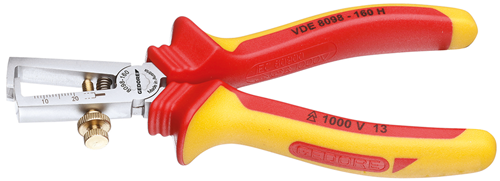

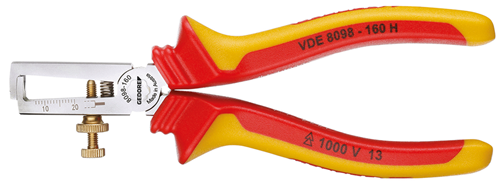

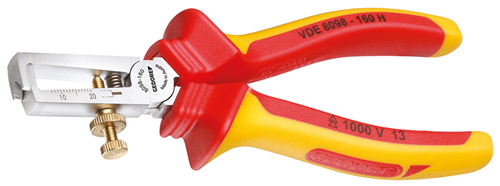

VDE wire stripper with 160 mm insulation sleeve
VDE 8098-160 H
/ Code no. 1552074
VDE wire stripper with 160 mm insulation sleeve
VDE 8098-160 H
/ Code no. 1552074
Price on request
Product line
EAN
4010886815977
Product description

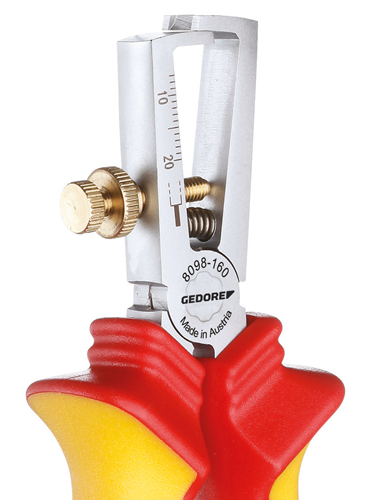

- Opens automatically, with spring and adjusting screw
- V-shaped cutting jaws for stripping the plastic insulation of single- and multi-core conductors
- Easy adjustment to the required wire or strand diameter by means of the set screw and lock nut
- For wires from 0.8 to 6.0 mm²
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
-
Dimensions and weights
- Total width [mm]: 52 mm
- Total height [mm]: 27 mm
- Total length [mm]: 160 mm
- Weight [kg]: 0,204 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw length L3 [mm]: 43,5 mm
- Joint types: inserted joint
- Handle available: Yes
- Handle design: 2-component grips VDE insulated up to 1000 V.
- Handle material: plastic
- Width of head 1 [mm]: 18,5 mm
- Head thickness [mm] T1: 8,5 mm
- Cable cross section [mm²]: 0,5-10,0 mm²
- Material: Quenched and tempered steel
- Standard: EN 60900/IEC60900
- Surface: chrome‑plated
- Compliance: compliant
