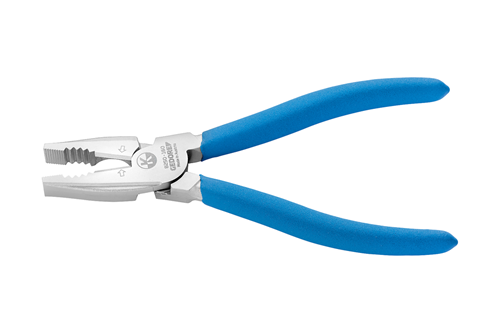

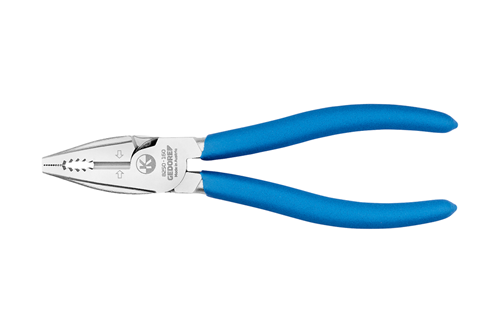

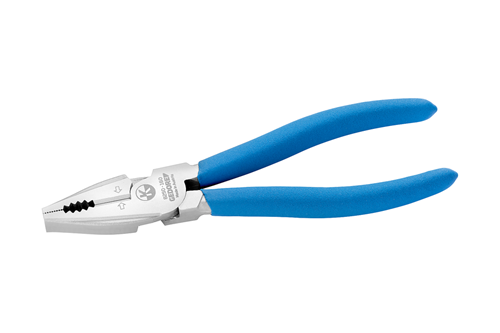

Power combination pliers, dip-insulated, 160 mm, chrome-plated
8250-160 TC
/ Code no. 3463192
Power combination pliers, dip-insulated, 160 mm, chrome-plated
8250-160 TC
/ Code no. 3463192
Price on request
Product line
EAN
4010886976067
Product description
- Acc. to DIN ISO 5746
- For heavy continuous use
- High leverage for easier work
- Induction hardened precision cutting edges, extra long, cutting edge hardness 62 - 64 HRC
- For round and flat material
- For all wires, also hard wire/piano wire, 1.6 mm
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- JC = chrome-plated, with 2-component handle covers
- TL = steel-grey, with blue dipped non-slip handles
- TC= chrome-plated, with blue dipped plastic coating
- Forceps means 35% less effort
- Gripping surface with file-cut for a particularly effective hold
- Roughly toothed gripping surfaces for securely holding screws, pipes etc.
-
Dimensions and weights
- Total width [mm]: 49 mm
- Total height [mm]: 14 mm
- Total length [mm]: 162 mm
- Weight [kg]: 0,18 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw shape [mm]: flat jaws
- Jaw length L3 [mm]: 35 mm
- Bevel: with
- Joint types: inserted joint
- Handle design: dip-insulated
- Handle colour: blue
- Hardening process: Induction hardened
- Width of head 1 [mm]: 22,8 mm
- Head thickness [mm] T1: 10,4 mm
- Material: Quenched and tempered steel
- with cutting edge: Yes
- Standard: DIN ISO 5746
- Surface: chrome‑plated
- Compliance: compliant
- Blade shape: with facet
- Hardness of cutting edge: 62 - 64 HRC
- Cutting values: Piano wire: 1,6 mm / 14 AWG Hard wire: 2 mm / 12 AWG Medium hard wire: 3,1 mm / 8 AWG Soft wire: 4 mm / 6 AWG Cu cable, multi wire cross section: 16 mm² Multi-wire cable Ø: 10 mm
- Width of centres W4 [mm]: 5,8 mm
- Thickness of point: 10,4 mm
