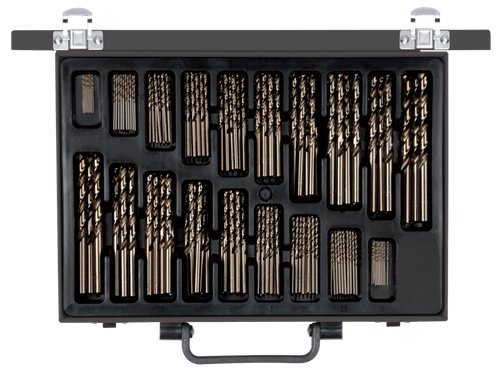

Twist drill set 170 pieces Ø 1-10mm 0.5 pitch
R93500170
/ Code no. 3301612
Twist drill set 170 pieces Ø 1-10mm 0.5 pitch
R93500170
/ Code no. 3301612
Price on request
Product line
EAN
4060833016124
Product description
- HSS twist drills DIN 338, type N, right-hand cutting
- Tip angle: 118°
- In metal assortment box
-
Dimensions and weights
- Total width [mm]: 240 mm
- Total height [mm]: 54 mm
- Total length [mm]: 335 mm
- Weight [kg]: 3,596 kg
-
Scope of delivery
- Parts list (Text): each 10x Twist drill bit, rolled 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 mm each 5x Twist drill bit, rolled 8.5 9.0 9.5 10.0 mm
- Storage: Metal assortment box
- Contents (Qty of pieces): 170
- Contents (parts list): 10× Ø 1 mm, total length: 34 mm, flute length: 12 mm 10× Ø 1.5 mm, total length: 40 mm, flute length: 18 mm 10× Ø 2 mm, total length: 49 mm, flute length: 24 mm 10× Ø 2.5 mm, total length: 57 mm, flute length: 30 mm 10× Ø 3 mm, total length: 61 mm, flute length: 33 mm 10× Ø 3.5 mm, total length: 70 mm, flute length: 39 mm 10× Ø 4 mm, total length: 75 mm, flute length: 43 mm 10× Ø 4.5 mm, total length: 80 mm, flute length: 47 mm 10× Ø 5 mm, total length: 86 mm, flute length: 52 mm 10× Ø 5.5 mm, total length: 93 mm, flute length: 57 mm 10× Ø 6 mm, total length: 93 mm, flute length: 57 mm 10× Ø 6.5 mm, total length: 101 mm, flute length: 63 mm 10× Ø 7 mm, total length: 109 mm, flute length: 69 mm 10× Ø 7.5 mm, total length: 109 mm, flute length: 69 mm 10× Ø 8 mm, total length: 117 mm, flute length: 75 mm 5× Ø 8.5 mm, total length: 117 mm, flute length: 75 mm 5× Ø 9 mm, total length: 125 mm, flute length: 81 mm 5× Ø 9.5 mm, total length: 125 mm, flute length: 81 mm 5× Ø 10 mm, total length: 133 mm, flute length: 87 mm
-
Technical characteristics
- Material: High‑speed steel (HSS)
- Standard: DIN 338 Typ N
- Surface: steam tempered
- Tip angle: 118 °
