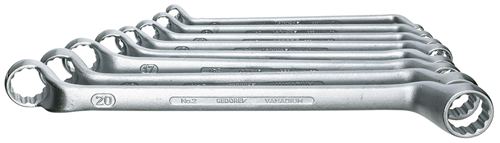

Double ring spanner set 10 pieces 6-27 mm
2-10
/ Code no. 6030740
Double ring spanner set 10 pieces 6-27 mm
2-10
/ Code no. 6030740
Price on request
Product line
EAN
4010886603079
Product description
- Most common sizes in a kit
- Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104
- Rings deep offset, strong but thin walls
- Vanadium steel 31CrV3, chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined:
- Ring: thin-walled, 5° deep offset from shaft, with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded, thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
-
Dimensions and weights
- Weight [kg]: 2,76 kg
-
Scope of delivery
- Parts list (Text): 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27
- Contents (Qty of pieces): 10
-
Technical characteristics
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 838 ISO 3310 ISO 1085 ISO 10104
- Surface: chrome‑plated
- Compliance: compliant
- Ring profile: UNIT-DRIVE
