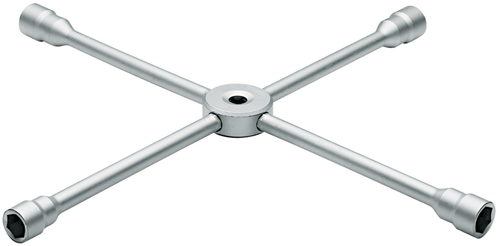

Cross key truck 27x30x32x33 mm 750x750 mm
28 LR
/ Code no. 6228930
Cross key truck 27x30x32x33 mm 750x750 mm
28 LR
/ Code no. 6228930
Price on request
Product line
EAN
4010886622896
Product description
- For trucks and heavy machinery
- Vanadium steel 31CrV3, chrome-plated
- Turned centre piece, particularly stable
- Dimensions: 750 x 750 mm
-
Dimensions and weights
- Total width [mm]: 750 mm
- Total height [mm]: 47 mm
- Total length [mm]: 755 mm
- Weight [kg]: 6,085 kg
-
Scope of delivery
- Parts list (Text): 27x30x32x33
- Contents (Qty of pieces): 1
-
Technical characteristics
- Insert-Ø: 40,0 mm x 44,0 mm x 46,0 mm x 46,0 mm
- Insert-Ø 1: 40,0 mm
- Insert-Ø 2: 44,0 mm
- Insert-Ø 3: 46,0 mm
- Insert-Ø 4: 46,0 mm
- Material: Chrome‑vanadium steel 31CrV3
- Surface: chrome‑plated
- Compliance: compliant
- Width across flats [mm]: 27 x 30 x 32 x 33
- Width across flats 1 [mm]: 27
- Width across flats 2 [mm]: 30
- Width Across Flat 3 [mm]: 32
- Width Across Flat 4 [mm]: 33
- Use: For trucks and heavy machines
