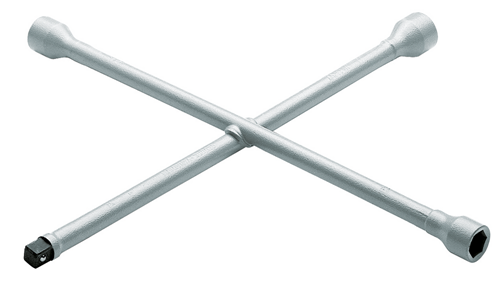

Cross key car 17x19x21x1/2" square 420x420 mm
28 PUV
/ Code no. 6228260
Cross key car 17x19x21x1/2" square 420x420 mm
28 PUV
/ Code no. 6228260
Price on request
Product line
EAN
4010886622827
Product description
- Acc. to DIN 3119, ISO 6788
- For car wheel nuts in metric and inch sizes
- Vanadium steel 31CrV3
- Grey powder-coated
- With protective central reinforcement (DBGM = German utility patent)
- Hot forged hexagon
- The collar, typical of GEDORE 4-way wheel wrenches, enlarges the welding area
- The positive-fit joint remains solid even under extreme loading
- Dimensions: 420 x 420 mm
-
Dimensions and weights
- Total width [mm]: 320 mm
- Total height [mm]: 32 mm
- Total length [mm]: 320 mm
- Weight [kg]: 1,3 kg
-
Scope of delivery
- Parts list (Text): 17x19 (3/4")x21x1/2" square
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive square inch: 1/2"
- Insert-Ø: 26,0 mm x 28,5 mm x 30,5 mm x 17,5 mm
- Insert-Ø 1: 26,0 mm
- Insert-Ø 2: 28,5 mm
- Insert-Ø 3: 30,5 mm
- Insert-Ø 4: 17,5 mm
- Colour: grey
- Material: Chrome‑vanadium steel 31CrV3
- Surface: powder‑coated
- Width across flats [mm]: 17 x 19 x 21 mm
- Width across flats 1 [mm]: 17
- Width across flats 2 [AF]: 3/4"
- Width across flats 2 [mm]: 19
- Width Across Flat 3 [mm]: 21 mm
- Use: For car wheel nuts in metric and inch sizes
