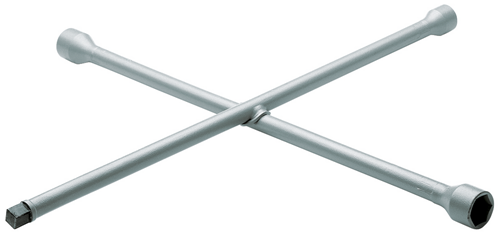

Cross wrench truck 24x27x32x3/4" square 750x750 mm
28 LV
/ Code no. 6229150
Cross wrench truck 24x27x32x3/4" square 750x750 mm
28 LV
/ Code no. 6229150
Price on request
Product line
EAN
4010886622919
Product description
- Acc. to DIN 3119, ISO 6788
- For trucks, agricultural machines, tractors and industrial uses
- Vanadium steel 31CrV3
- Grey powder-coated
- Hot forged hexagon
- The collar, typical of GEDORE 4-way wheel wrenches, enlarges the welding area
- The positive-fit joint remains solid even under extreme loading
- Dimensions: 750 x 750 mm
-
Dimensions and weights
- Total width [mm]: 750 mm
- Total height [mm]: 46 mm
- Total length [mm]: 755 mm
- Weight [kg]: 5,515 kg
-
Scope of delivery
- Parts list (Text): 24x32x27x3/4" square
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive square inch: 3/4"
- Insert-Ø: 34,5 mm x 45,0 mm x 38,5 mm x 26,0 mm
- Insert-Ø 1: 34,5 mm
- Insert-Ø 2: 45,0 mm
- Insert-Ø 3: 38,5 mm
- Insert-Ø 4: 26,0 mm
- Colour: grey
- Material: Chrome‑vanadium steel 31CrV3
- Surface: powder‑coated
- Width across flats [mm]: 24 x 27 x 32 mm
- Width across flats 1 [mm]: 24
- Width across flats 2 [mm]: 27
- Width Across Flat 3 [mm]: 32 mm
- Width across flats 4 [AF]: 3/4
- Use: For trucks, agricultural machines, tractors and industrial uses
