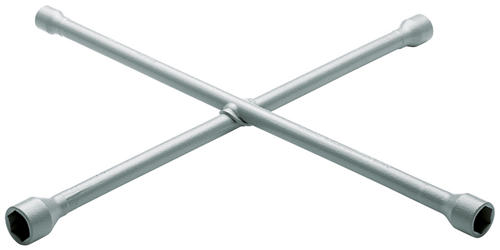

Cross wrench for small trucks 19x22x24x27 mm 600x600 mm
28 CU
/ Code no. 6228500
Cross wrench for small trucks 19x22x24x27 mm 600x600 mm
28 CU
/ Code no. 6228500
Price on request
Product line
EAN
4010886622858
Product description
- Acc. to DIN 3119, ISO 6788
- For delivery vans and light trucks, buses and tractors
- Vanadium steel 31CrV3
- Grey powder-coated
- Hot forged hexagon
- The collar, typical of GEDORE 4-way wheel wrenches, enlarges the welding area
- The positive-fit joint remains solid even under extreme loading
- Dimensions: 600 x 600 mm
-
Dimensions and weights
- Total width [mm]: 62 mm
- Total height [mm]: 39 mm
- Total length [mm]: 65 mm
- Weight [kg]: 3,155 kg
-
Scope of delivery
- Parts list (Text): 19x24x22x27 (3/4x15/16x7/8x1.1/16")
- Contents (Qty of pieces): 1
-
Technical characteristics
- Insert-Ø: 28,5 mm x 32,0 mm x 34,5 mm x 38,5 mm
- Insert-Ø 1: 28,5 mm
- Insert-Ø 2: 32,0 mm
- Insert-Ø 3: 34,5 mm
- Insert-Ø 4: 38,5 mm
- Colour: grey
- Material: Chrome‑vanadium steel 31CrV3
- Surface: powder‑coated
- Width across flats [mm]: 19 x 24 x 22 mm x 27
- Width across flats 1 [AF]: 3/4"
- Width across flats 1 [mm]: 19
- Width across flats 2 [AF]: 15/16"
- Width across flats 2 [mm]: 24
- Width across flats 3 [AF]: 7/8"
- Width Across Flat 3 [mm]: 22 mm
- Width across flats 4 [AF]: (1.1/16")
- Width Across Flat 4 [mm]: 27
- Use: For delivery vans and light trucks, buses and tractors
