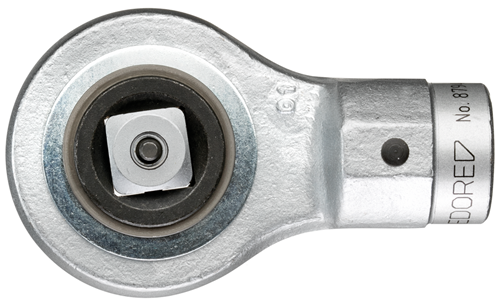

Ratchet head 22 Z - 3/4"
8794-03
/ Code no. 1427318
Ratchet head 22 Z - 3/4"
8794-03
/ Code no. 1427318
Price on request
Product line
EAN
4002805921432
Product description
- For solving difficult assembly problems, easily replaceable
- Forged
- Chromium vanadium steel
- Matt chrome-plated
- With locking pin
-
Dimensions and weights
- Weight [kg]: 0,948 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector pin: 22 mm
- Drive type/drive: Push-through square with pin
- Drive connector square [metric]: 20 mm
- Drive square inch: 3/4"
- Number of teeth: 36
- Continuous load: 3/4" = 850 N·m
- Material: Chrome‑vanadium steel
- Return angle: 10 °
- Depth gauge [metric]: 56,0 mm
