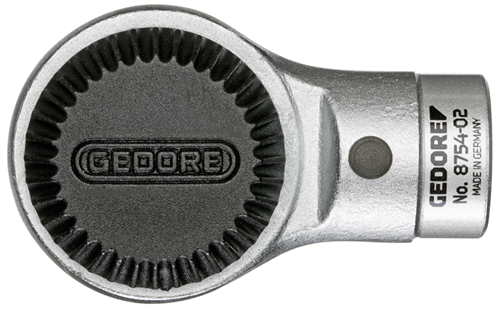

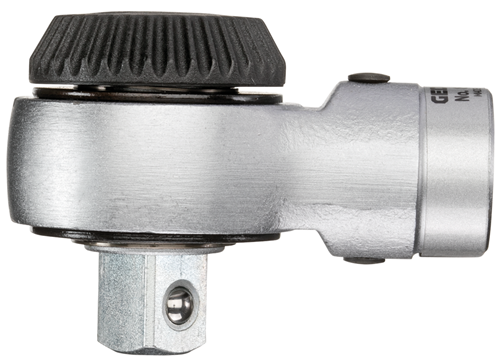

Attachable reversible ratchet 16 Z - 1/2"
8754-02
/ Code no. 7712010
Attachable reversible ratchet 16 Z - 1/2"
8754-02
/ Code no. 7712010
Price on request
Product line
EAN
4002805875421
Product description
- For solving difficult assembly problems, easily replaceable
- Forged
- Chromium vanadium steel
- Matt chrome-plated
- With locking pin
- Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and/or maximum load of cavity
-
Dimensions and weights
- Weight [kg]: 0,35 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector pin: 16 mm
- Drive type/drive: Reversible ratchet
- Drive connector square [metric]: 12,5 mm
- Drive square inch: 1/2"
- Number of teeth: 48
- Continuous load: 1/2" = 340 N·m
- Material: Chrome‑vanadium steel
- Return angle: 7,5 °
- Depth gauge [metric]: 32,0 mm
