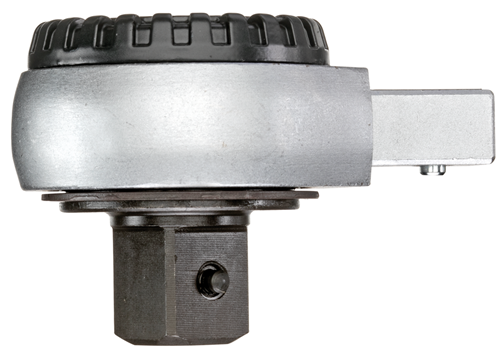

Rectangular reversible ratchet head 1/2" SE 14x18
7418-02
/ Code no. 7687580
Rectangular reversible ratchet head 1/2" SE 14x18
7418-02
/ Code no. 7687580
Price on request
Product line
EAN
4002805748022
Product description
- For solving difficult assembly problems, easily replaceable
- Forged
- Chromium vanadium steel
- Matt chrome-plated
- With locking pin
- Fine-toothed
- Return angle 7°
- Max. continuous load of ratchet according to DIN EN ISO 6789 and/or maximum load of cavity
-
Dimensions and weights
- Total width [mm]: 47 mm
- Weight [kg]: 0,36 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector rectangular: 14 x 18
- Drive connector square [metric]: 12,5 mm
- Drive square inch: 1/2"
- Number of teeth: 50
- Continuous load: 1/2" = 340 N·m
- Width of head 1 [mm]: 47,0 mm
- Head height 1 [mm]: 28,8 mm
- Head height 2 [mm]: 28,8 mm
- Material: Chrome‑vanadium steel
- Return angle: 7,2 °
- Depth gauge [metric]: 25,0 mm
