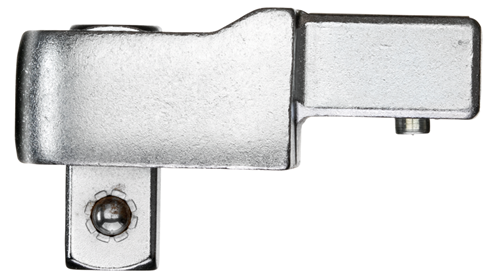

Rectangular fixed square head 3/4" SE 14x18
7618-04
/ Code no. 7688200
Rectangular fixed square head 3/4" SE 14x18
7618-04
/ Code no. 7688200
Price on request
Product line
EAN
4002805768044
Product description
- For solving difficult assembly problems, easily replaceable
- Forged
- Chromium vanadium steel
- Matt chrome-plated
- With locking pin
- Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and/or maximum load of cavity
-
Dimensions and weights
- Total width [mm]: 40 mm
- Weight [kg]: 0,398 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector rectangular: 14 x 18
- Drive connector square [metric]: 20 mm
- Drive square inch: 3/4"
- Continuous load: 3/4" = 400 N·m
- Width of head 1 [mm]: 40,0 mm
- Head height 2 [mm]: 25 mm
- Material: Chrome‑vanadium steel
- Depth gauge [metric]: 25,0 mm
