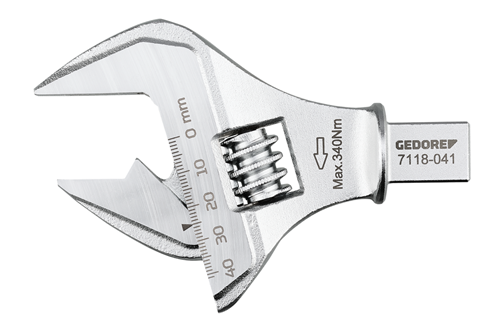

Insert Open-End Wrench 14x18 adjustable 8–41 mm
7118-041
/ Code no. 3544508
Insert Open-End Wrench 14x18 adjustable 8–41 mm
7118-041
/ Code no. 3544508
Price on request
Product line
EAN
4010886988831
Product description
- Versatile application thanks to flexible jaw width adjustment
- Replaces multiple tools with fixed wrench sizes
- Available in 2 model variants for 14x18 mount
- Uniform center-to-center distance when adjusting jaw width simplifies calculation

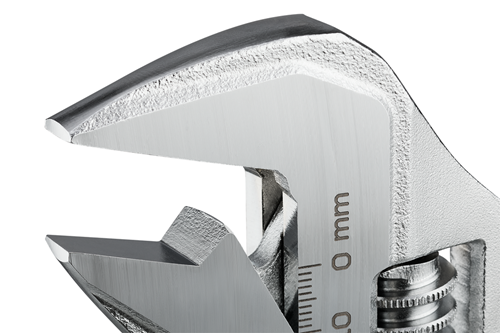

- Laser-etched adjustment scales facilitate precise jaw setting
- Suitable for metric and imperial screw connections
- Secure hold in the mount via integrated spring-pin lock
- For example, suitable for torque wrenches of the Torcofix TF-SE series, DREMOMETER SE
-
Dimensions and weights
- Total width [mm]: 85 mm
- Total height [mm]: 30 mm
- Total length [mm]: 130 mm
- Weight [kg]: 0,436 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics

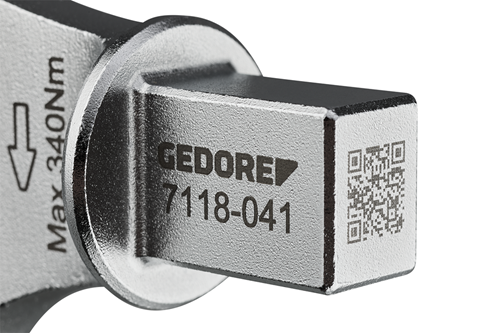

- Drive connector rectangular: 14 x 18
- Execution: roller with left‑hand thread
- Continuous load: 340 Nm
- Range of application: Assembly Repair and maintenance Maintenance and repair
- Setting scale: Yes
- Size: 12"
- Material: Chrome‑vanadium steel
- Jaw set: 0 °
- Surface: chrome‑plated
- Clamping width (max.): 41 mm
- Clamping width (min.): 8 mm
- Clamping width [inch]: 5/16-1.1/2"
- Depth gauge [metric]: 86,0 mm
