Tool set 11xCT modules + various tools 166 pieces
R21010002
/ Code no. 3301657
Tool set 11xCT modules + various tools 166 pieces
R21010002
/ Code no. 3301657
Price on request
Product line
EAN
4060833016575
Product description
- Socket wrench tools:
- Coupler in acc. with DIN 3120, ISO 1174, with ball locking device
- Square drive as per DIN 3120, ISO 1174, with ball retention groove
- Chrome-vanadium steel, matt satin chrome-plated
- 2C reversible ratchet 1/4": To DIN 3120 - A 6.3, ISO 1174, lever for right and left-hand operation, push button release, fine-toothed, oval form, 2-component-handle
- Square plug-in handle 1/4", 1-component handle with female square
- Socket 1/4" hexagon: Metric, short, to DIN 3124, ISO 2725
- Screwdriver bit socket 1/4" for in-hex screws: Pressed-in, phosphated pin
- Screwdriver bit socket 1/4" slotted, PH, PZ, TX with drill hole: Pressed-in, phosphated pin
- Socket extension 1/4"
- Sliding T-handle with slide 1/4": Acc. to DIN 3122, ISO 3315
- Universal joint 1/4": Joint bolted on, design to DIN 3123 - C 6.3
- 2C reversible ratchet 1/2": To DIN 3120 - A 12,5, ISO 1174, lever for right and left-hand operation, push button release, fine-toothed, oval form, 2-component-handle
- Socket extension 1/2"
- Sliding T bar 1/2", with slide, to DIN 3122, ISO 3315
- Universal joint 1/2": Joint bolted on, design to DIN 3123 - C 12,5
- Socket, hex: Metric, short, to DIN 3124, ISO 272
- Screwdriver bit socket 1/2" for in-hex screws: Pressed-in, phosphated pin
- Ratchet wrenches: Based on DIN 3113, ISO 3318, ring offset 15°, reversible for right and left-hand operation, 15° jaw position, surface matt satin chrome-plated
- Hexagon socket key set: To DIN ISO 2936, hardened throughout, phosphated
- Chromium vanadium steel
- Flat ring spanner: To DIN 838, ISO 3318, ISO 1085, ISO 10104, 5° offset, chrome vanadium steel, surface matt satin, chrome-plated
- Water pump pliers: To DIN 8976 Form C, lengthways-serrated gripping surfaces, box joint, 7 settings, chrome vanadium steel, powder-coated
- Combination pliers: To DIN ISO 5746, inductively hardened cutting edges, 2-component-handle, forged
- Bent nose telephone pliers: To DIN ISO 5745, straight gripping surfaces, lengthways-serrated, inductively hardened cutting edges, 2-component-handle, forged
- Side cutters: To DIN ISO 5749, slender head, inductively hardened, long cutting edges, 2-component-handle, forged
- Circlip pliers: To DIN 5254 Form A, straight precision tips, opening spring, DIN 471 for retaining rings, DIN 983
- Acc. to DIN 5254 Form B, angled precision tips, opening spring, DIN 471 for retaining rings, DIN 983
- Acc. to DIN 5256 Form C, straight precision tips, opening spring, DIN 472 for retaining rings, DIN 984
- Acc. to DIN 5256 Form D, 90° angled precision tips, DIN 472 for retaining rings, DIN 984
-
Dimensions and weights
- Weight [kg]: 19 kg
-
Scope of delivery

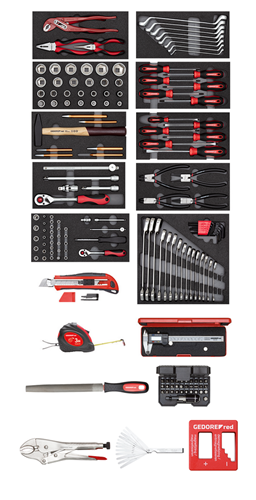

- Parts list (Text): R22150006 1/4" socket wrench set in 1/3 foam module R22150000 Double ring wrench set in 1/3 foam module R22150018 Set of pliers in 1/3 foam module R22150019 Hammer and chisel set in 1/3 foam module R22150009 Socket wrench set 1/2" in 1/3 foam module R22150008 Ratchet with accessories 1/2" in 1/3 foam module R22250001 Ring ratchet open-end wrench set and offset screwdriver in 2/3 foam module R22150014 Screwdriver set in 1/3 foam module R22150015 Screwdriver set in 1/3 foam module R22150017 Set of circlip pliers in 1/3 foam module R27200010 Grip pliers 10" 225 mm R33005031 Bit-Box 1/4" 32 pieces R38990000 (De)magnetizer R94420021 Digital caliper R93200025 Cutter knife with 5 spare blades 175 mm R94650013 Set of feeler gauges R93160052 Half-round file 310 mm R94550003 Roll tape measure 3 m
- Storage: Foam module
- Contents (Qty of pieces): 166
-
Technical characteristics
- Material: Foam
